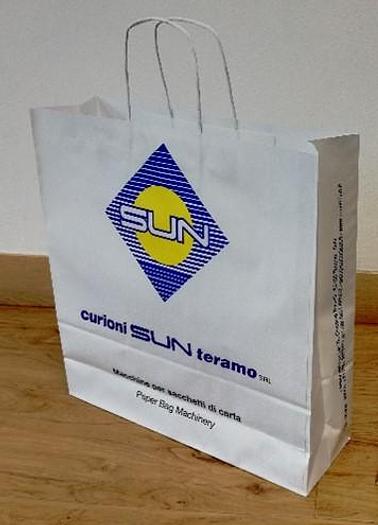

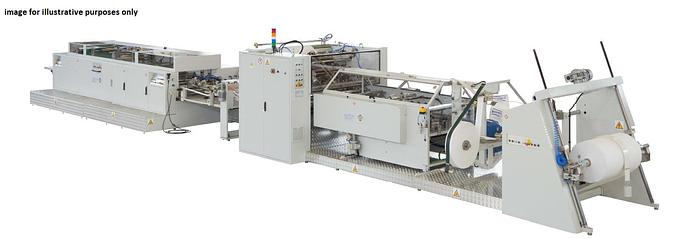

2018 CURIONI SUN MASTER 540 - square bottom paper bag making machine with twisted handles unit

Manufacturer: CURIONI

Model: SUN MASTER 540

Year: 2018

Type: Reel fed Square bottom paper bag making machine with in line twisted handle unit

Technical specification of the paper bag making machine SM540

·         Bag width: 220 – 540 mm (Bag width with handles: 240 – 540 mm)

·         Bag length: 320 - 650 mm (Bag length with handles: 320 - 550 mm)

·         Bottom width: 80 - 200 mm

·         Cut length: 400 - 780 mm

·         Reel width: 720 - 1430 mm

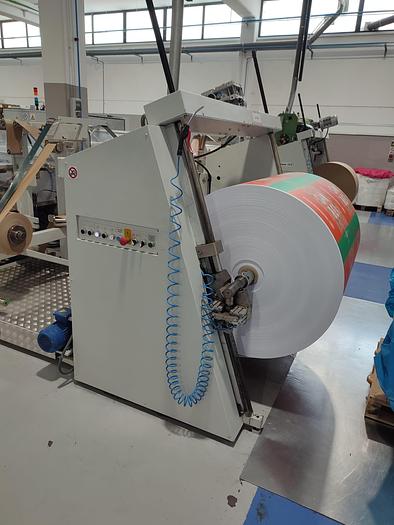

·         Max. diameter of the reel: 1500 mm

·         Inner core diameter: 76 mm

·         Weight of paper: 80 -130 gsm

·         Slitting system (rotating blade) implemented in line, to adapt/reduce the paper web width according to the production format (suction system not included).

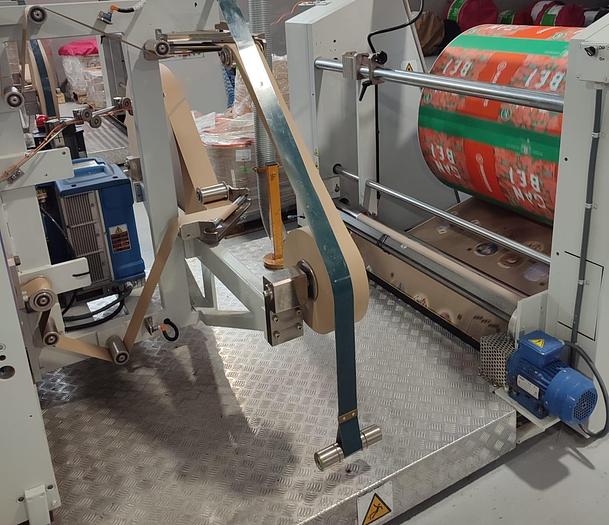

Technical specification of the twisted cord handle making unit M100

·         Type of handle twisted-paper cord or cotton with a twisted paper core.

·         Twisted paper cord diameter:  4 - 5 mm

·         Handle width:  100 mm

·         Patch height: 50 mm

·         Patch length: 200 mm

·         Reels width:  100 mm

·         Max. diameter of paper reels for patches:  1050 mm

·         Inner core diameter:76 mm

·         Weight of usable paper for patches: 90 -130 gsm

General technical features

·         Dimensions of the machine: length 15500 mm, width 2800 mm, height 2130 mm.

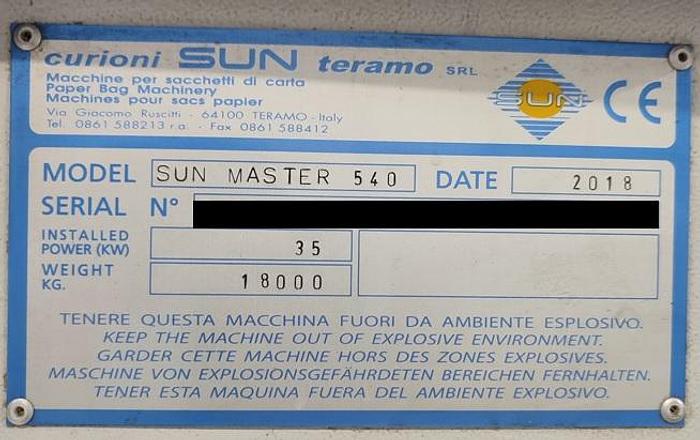

·         Total installed electrical power: Kw 35.

·         Power supply three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5%.

·         Compressed air supply 600/700 kPa, dry and clean.

·         Compressed air consumption: 100 Nl/min

Machine visible in production and available if unsold.

Delivery time: 120 days from downpayment (to be agreed).
