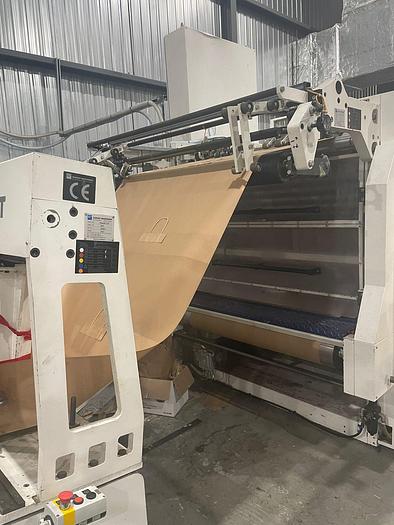

2012 GARANT TRIUMPH 5QT / SK / SERVO (sos paper bag machine - twisted handles unit)

SOS PAPER BAG MAKING MACHINE WITH TWISTED HANDLE UNIT (SERVO)

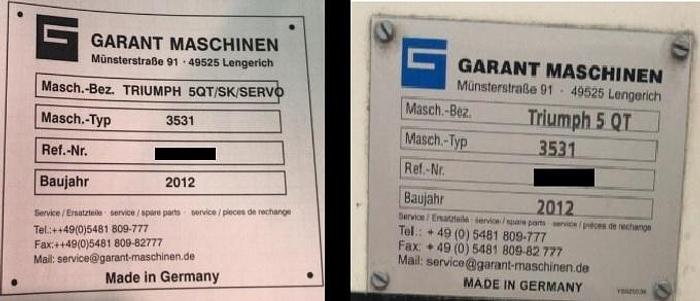

Manufacturer: GARANT MASCHINEN
Model: TRIUMPH 5QT / SK / SERVO
Year: 2012
Servo: yes

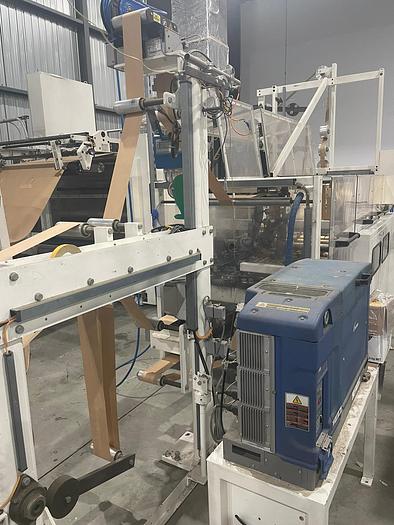

Handles unit: Twisted handle unit
Bag width [mm] 180 – 460 (min. with 7,5 " handles 220 mm) (min. with 9" handles 260 mm)
Bottom width [mm] 70 – 230
Cut-off length [mm] 360 – 770
Roll width [mm] max. 1370
Roll diameter [mm] max. 1300
Roll internal diameter: 76 mm
Paper gr.: 90 - 180 g/m2
Compressed air consumption. 50 Nl/min
Air pressure: 6 - 8 bar
Electrical consumption: approx 130 Kva
3x400/50hz (with neutral conductor with full capacity)
Laser printer, adapted to print on the handle patch.
Gluing system additional equipments: hot glue for longitudinal gluing, pump for the patch glue applicator, applicator for glue wasting reduction.
CE conformity - Manual and drawings available.

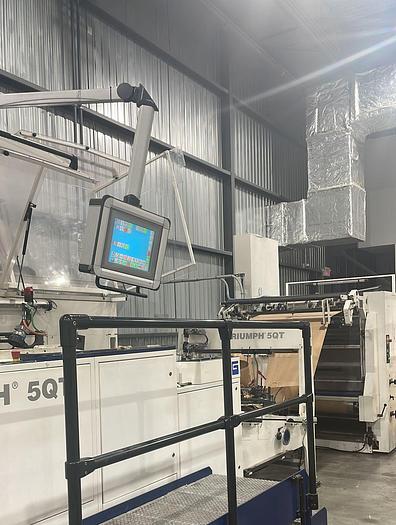

Triumph 5QT is popular for high production speed and simplified operation.
The use of SERVO technology has led to a reduction of up to 50 % in the set-up times on format changes in comparison to other block bottom bag machines.

Visible in operation.
