1996 CURIONI SUN MASTER 540 Reel fed Square bottom paper bag making machine with in line twisted handle unit
1996 CURIONI SUN MASTER 540 Reel fed Square bottom paper bag making machine with in line twisted handle unit
Posizione:
Disponibilità in magazzino:1
Descrizione

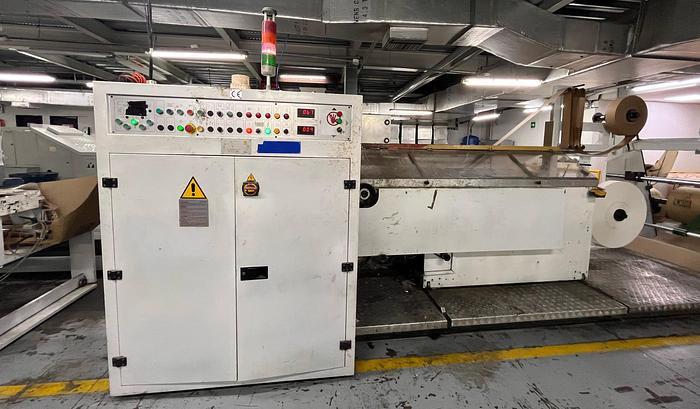

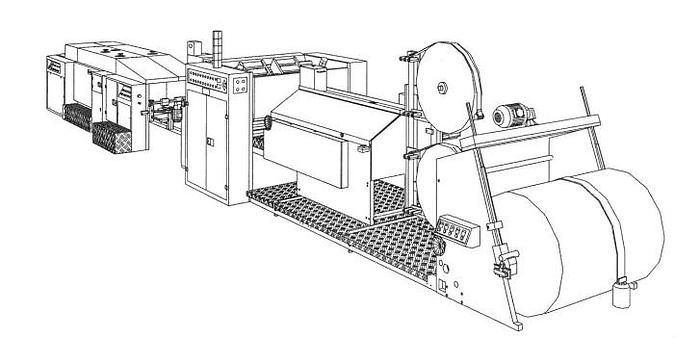

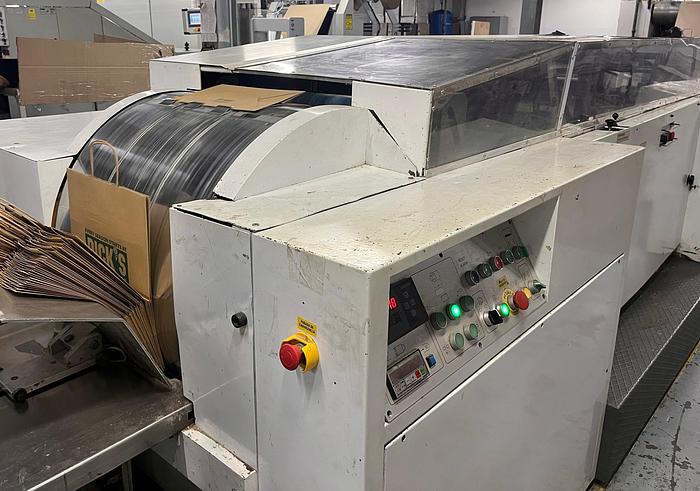

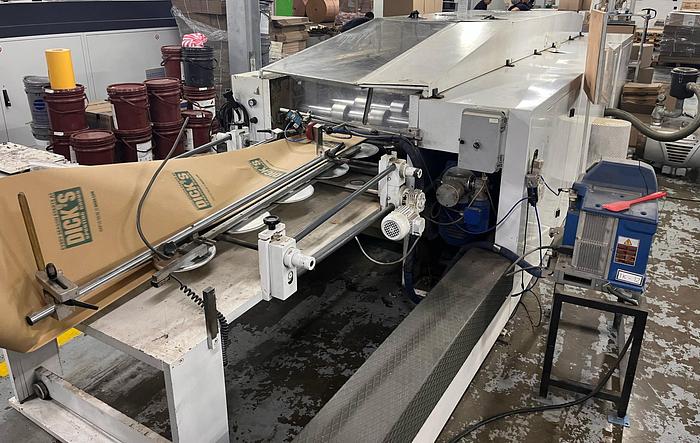

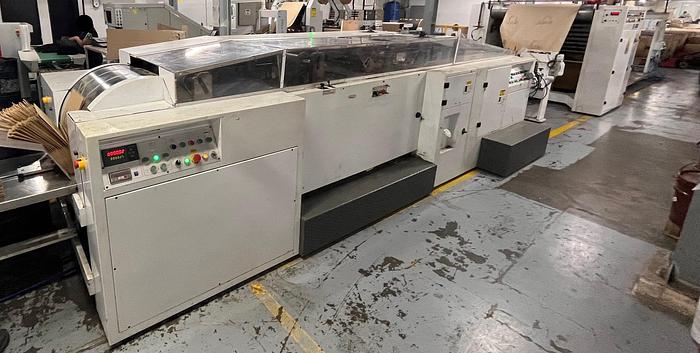

The paper bag making machine SUN MASTER 540 is fed by reel and it has been designed to manufacture square bottom paper bags with or without handles, from the small up to the medium formats.

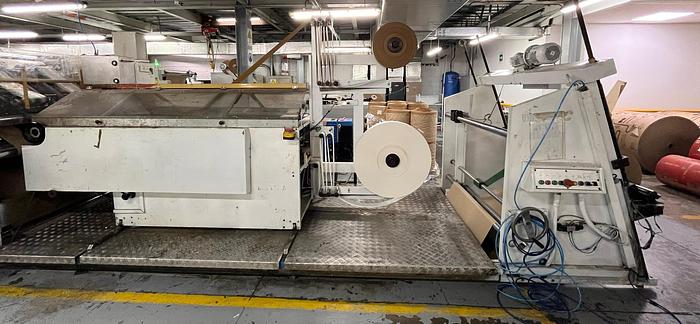

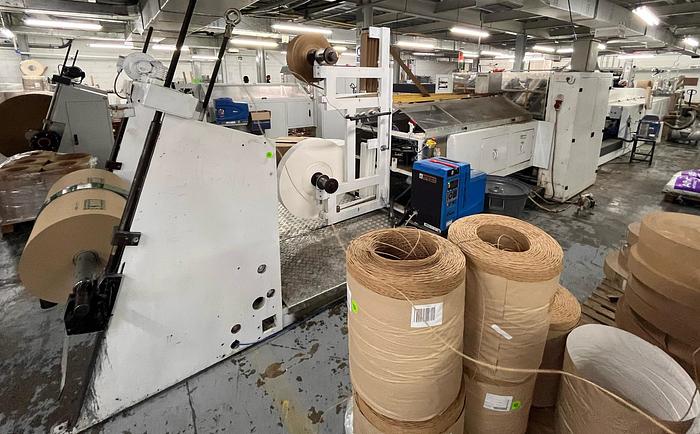

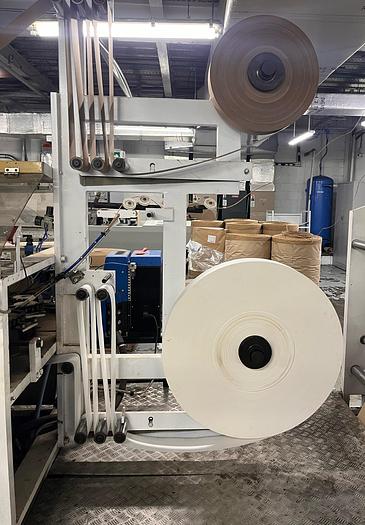

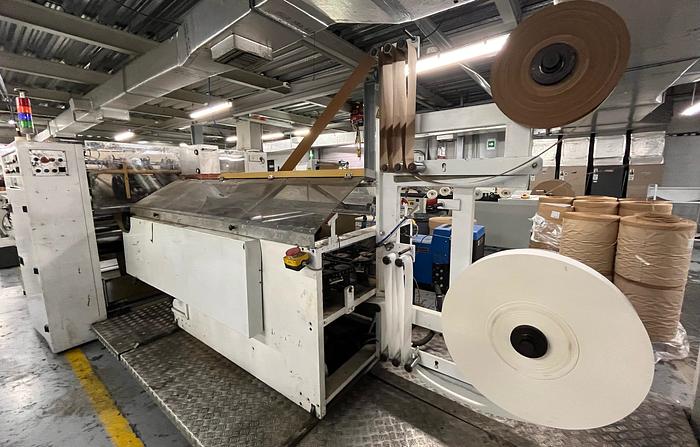

This pre-owned machine is equipped with twisted handle making unit for the manufacture and application of handles which is in line with the paper bag making machine (international Patent).
Machine Immediately available, visible in production and available subject to unsold.
MABV MACHINERIES is CURIONI SUN TERAMO official partner for pre-owned machines.
Specifiche
| Produttore | CURIONI |
| Modello | SUN MASTER 540 |
| Anno | 1996 |
| Condizione | Used (visible in production) |
| Bag width (min - max) | 220 – 540 mm (Bag width with handles: 240 – 540 mm) |
| Bag lenght (min - max) | 320 - 650 mm (Bag length with handles: 320 - 550 mm) |
| Bottom width (min - max) | 80 - 200 mm |
| Cut lenght (min - max) | 400 - 780 mm |
| Reel width | 720 - 1430 mm |
| Max diameter of the reel | 1500 mm |
| Inner core diameter | 76 mm |
| Weight of paper for paper bags production (min - max) | 80 -130 gsm |
| Type of handle | twisted-paper cord or cotton with a twisted paper core |
| Twisted paper cord diameter | 4 - 5 mm |
| Handle width | 100 mm |
| Handle Patch height | 200 mm |
| Handle Patch length | 100 mm |
| Max. diameter of paper reels for patches | 1050 mm |
| Inner core diameter of paper reels for patches | 76 mm |
| Weight of usable paper for handle patches | 90 -130 gsm |

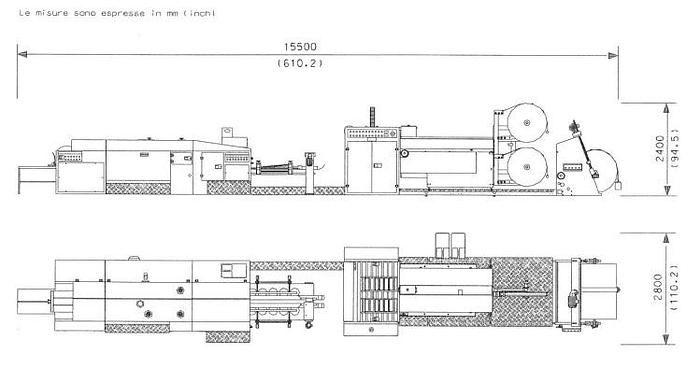

| Dimensions of the machine (approx) | Length 15500 mm | Width 2800 mm | Height 2130 mm |
| Total installed electrical power | 35 Kw |
| Power supply | three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5% |
| Compressed air consumption | 600/700 kPa, dry and clean |
| Compressed air supply | 100 Nl/min |
| Visible in operation | Yes |
