1992 MAF ORION - 6 col. stack flexo 1200 mm
1992 MAF ORION - 6 col. stack flexo 1200 mm
Posizione:Europa
Disponibilità in magazzino:1
Descrizione

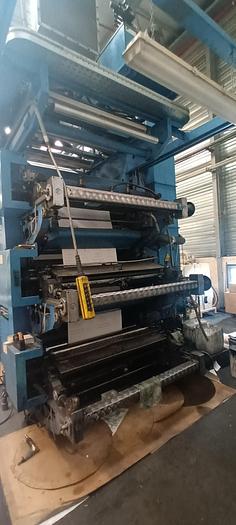

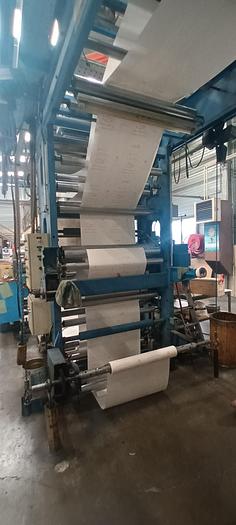

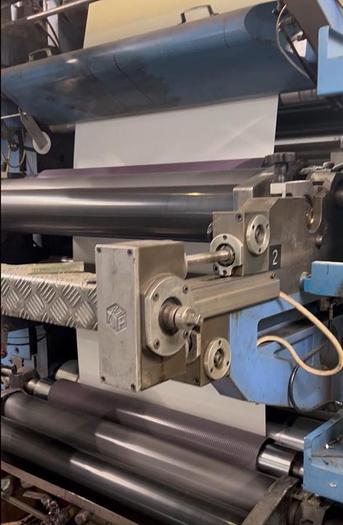

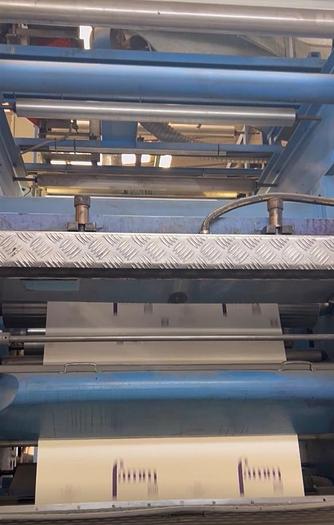

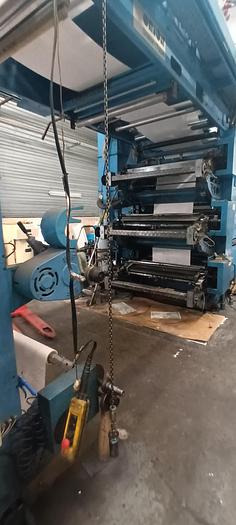

6 col. MAF stack type flexo printing machine immediately available for sale (subject to unsold).
The machine, in good working condition, can be seen in operation.
Specifiche
| Produttore | MAF |
| Modello | ORION |
| Anno | 1992 |
| Condizione | Used (visible in production) |
| N° of colors | 6 |
| Print possibilities | 6+0, 4+2, 3+3, 5+1 |
| Max print width | 1200 |
| Max web width/material passage | 1250 mm |
| Unwinder max. roll diameter | 800 mm |
| rewinder | Coupled with a double MAF rewinder with a spool diameter of 800 mm (year 1994) |
| Min-max print repeats | 300 mm -1200 mm |
| Materials | PAPER, BPDE, HDPE |
| Max mechanical speed | 200 m/min |
| Drying system | Air |
| Electrical tension | 380 V/3ph/50Hz |

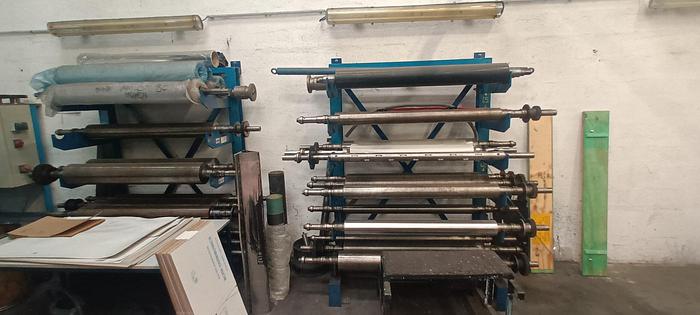

| Included accessories | Anilox: (3 x 80 L/cm – 15.3 cm3) (3 x 120 L/cm – 9.3 cm3) (2 x 140 L/cm – 5.6 cm3) (1 x 280 L/cm – 10 cm3) | Clichè holder cylinders: (4 x 300 mm) (4 x 330 mm) (2 x 370 mm) (2 x 400 mm) (2 x 450 mm) (2 x 500 mm) (2 x 540 mm) (2 x 600 mm) + 2 * DEV carrier 400 mm and sleeve carrier at the same time | Sleeves: (3 * Twinlock DEV sleeve 450 mm) (2 * DEV hard sleeve 450 mm) (2 * DEV hard sleeve 500 mm) (2 * DEV hard sleeve 600 mm). 9 x Inkwell 2 x doctor blades system + inkwell 6 x rubber bubblers | Roll holder bar available: (2 x Unwinder bar 70/76 mm) (1 x Bar with cone) (2 x rewinder bar 70/76 mm) (2 x rewinder bar 50 mm) (1 x rewinder bar 120 mm). |
| Visible in operation | yes |
