1997 CURIONI SUN MASTER 540 - Rell fed square bottom paper bag machine (twisted handles)
1997 CURIONI SUN MASTER 540 - Rell fed square bottom paper bag machine (twisted handles)
Posizione:Europa
Disponibilità in magazzino:1
Descrizione
The paper bag making machine SUN MASTER 540 is fed by reel and it has been designed to manufacture square bottom paper bags with or without handles, from the mediuml up to the big formats.
This pre-owned machine is equipped with twisted handle making unit for the manufacture and application of handles which is in line with the paper bag making machine (international Patent).

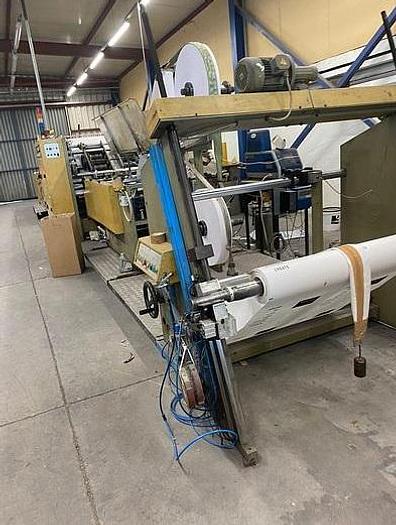

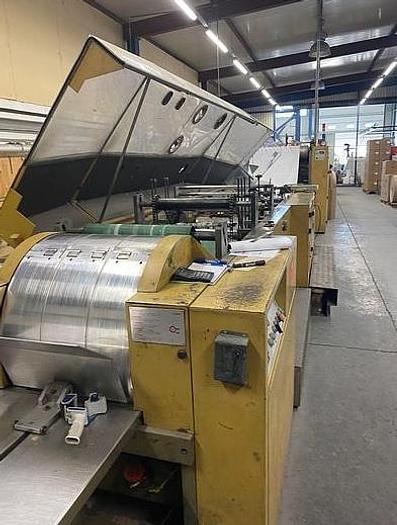

Machine visible in operation.
Specifiche
| Produttore | CURIONI |
| Modello | SUN MASTER 540 |
| Anno | 1997 |
| Condizione | Usato |
| Bag width (min - max) | 220 – 540 mm (Bag width with handles: 240 – 540 mm) |
| Bag lenght (min - max) | 320 - 650 mm (Bag length with handles: 320 - 550 mm) |
| Bottom width | 80 - 200 mm |
| Cut length | 400 - 780 mm |
| Reel width | 720 - 1430 mm |
| Inner core diameter | 76 mm |
| Weight of paper | 80 -130 gsm |
| TWISTED handle unit | Type of handle twisted-paper cord or cotton with a twisted paper core | Twisted paper cord diameter: 4 - 5 mm | Handle width: 100 mm | Patch height: 50 mm | Patch length: 200 mm | Reels width: 100 mm | Max. diameter of paper reels for patches: 1050 mm | Inner core diameter:76 mm | Weight of usable paper for patches: 90 -130 gsm |
| Dimensions of the machine (approx) | Length 15500 mm | Width 2800 mm | Height 2400 mm |
| Gross weight (approx) | 21000 Kg |
| Total installed electrical power | three-phase 400 V + NEUTRE + GROUND at 50 Hz |
| Compressed air supply | 600/700 kPa, dry and clean |
| Compressed air consumption | 100 Nl/min |
| Visible in operation | yes |
