2006 LEMO (Germany) INTERmat ST-N 850 - "Wicket"
2006 LEMO (Germany) INTERmat ST-N 850 - "Wicket"
Posizione:
Disponibilità in magazzino:1
Descrizione
Pre-owned LEMO wicket bag making machine of 2006. This LEMO wicket bag making machine can process LDPE, LLDPE (Borstar), MDPE (Riblen), HDPE, PP Cast.

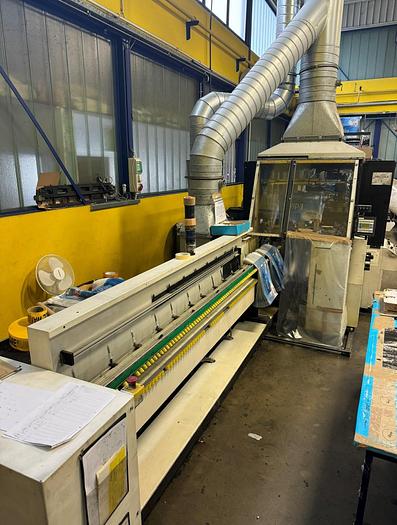

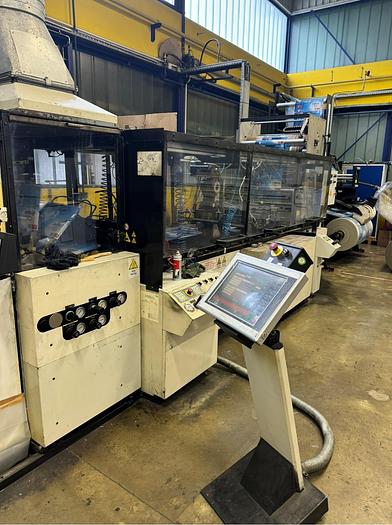

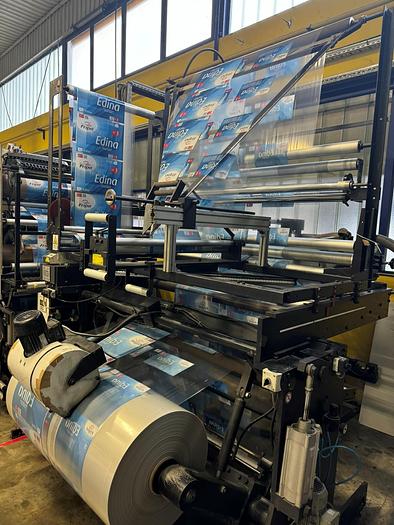

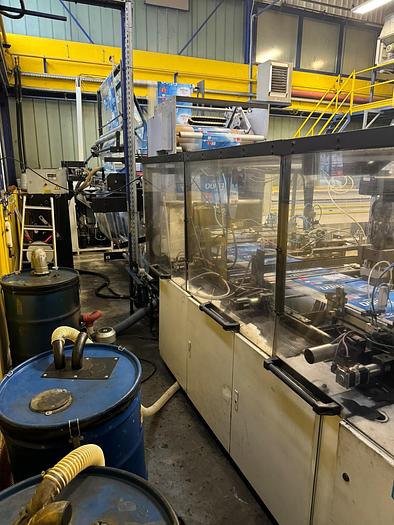

The machine visible in operation and available for sale.
Available for delivery in September 2024 (the machine can be reserved)
Specifiche
| Produttore | LEMO (Germany) |
| Modello | INTERmat ST-N 850 - "Wicket" |
| Anno | 2006 |
| Condizione | Used (visible in production) |
| Material | LDPE; LLDPE (Borstar); MDPE (Riblen); HDPE; PP Cast |
| Type of bags | cut-out; pins; longitudinal welding (switching) |
| Foil | sleeve; half sleeve; canvas; tongue - pins; rebate; perforation |
| * Roll diameter | max. 800 mm |
| Bag width (min - max) | 100 - 400 mm |
| Bag height (max.) | 850 mm |
| Thickness of the bag | min.: 15 my (hand cut) - max.: 150 my (without fold) |
| Falc at the bottom of the bag (min-max) | 27 - 100 mm |
| Guiding the film through the machine | two-sided FIFA (on the machine) |
| Trim foil | yes |
| * Screwdriver | 1600 mm |
| * Welding method | welding bar |
| Length of welding bar | 880 mm |
| * Printed foil | photocell |
| * Microperforation | no |
| Perforation | no |
| Product ventilation | hole: yes | cross: yes |
| Additional seam (fold - crease) | yes |
| Speed | min. 50 - max. 400 pcs/min = 3.000 – 24.000 pcs/h |
| Sleeve diameter | Ø 76 mm; Ø 152 mm – side roller grip – without axis |

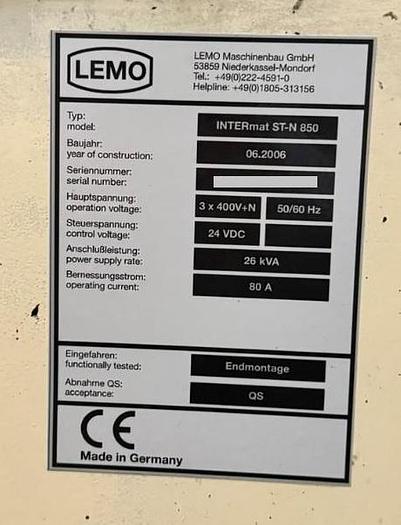

| Operation voltage | 3x400 V+N | 50/60 Hz |
| Control voltage | 24 VDC |
| Power supply rate | 26 kVA |
| Operating current | 80 A |
| Visible in operation | yes |
