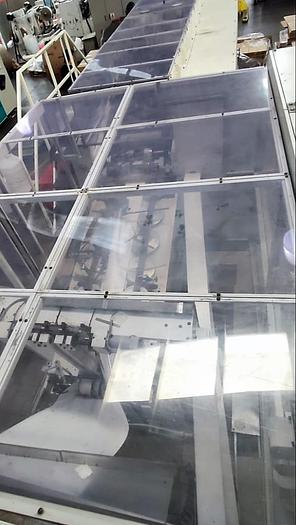

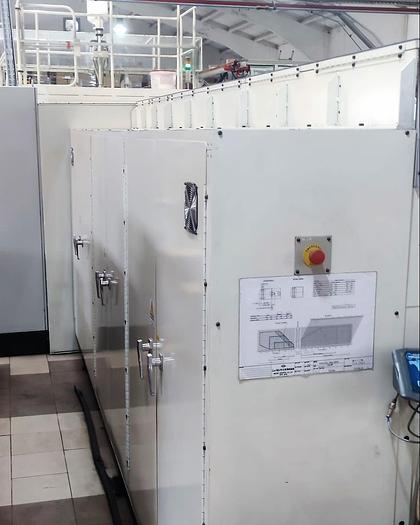

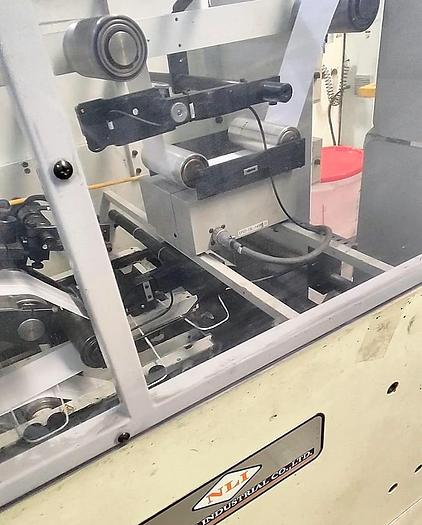

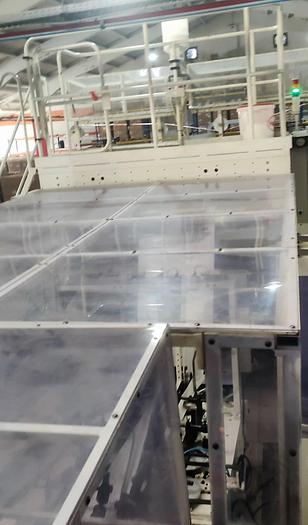

2014 NEWLONG TS2746H + H607 - Roll fedsquare Bottom paper Bag Making Machine with twisted handle unit

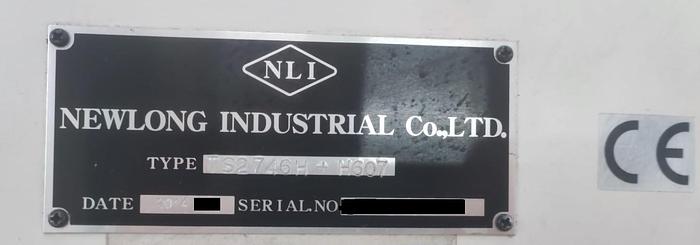

Manufacturer: NLI - NEWLONG INDUSTRIAL Co., LTD.

Model: TS2746H + H607

Roll fed automatic square Bottom paper Bag Making Machine with in line twisted handle unit

Year 2014

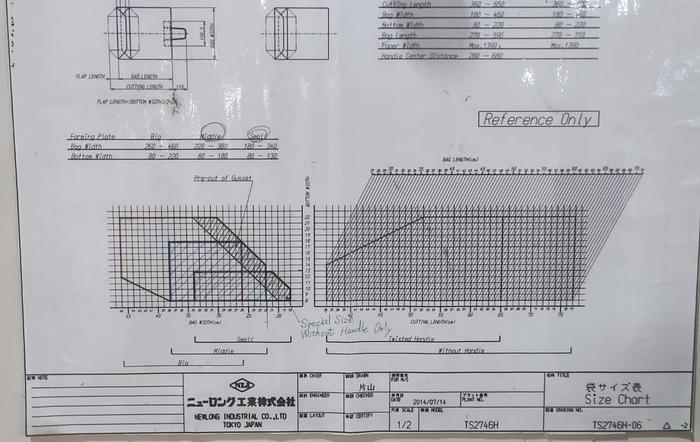

Bag width:(without handles) Min. 18,0 Max. 46,0 cm (with handles) Min. 20,0 Max. 46,0 cm.

Bag length:(without handles) Min. 27,0 Max. 71,0 cm (with handles) Min. 27,0 Max. 59,0 cm.

Tube length: (without handles) Min 36,0 Max 77,0 cm  (with handles) Min 36,0 Max 65,0 cm.

Bottom width: Min. 8,0 Max. 22,0 cm.

Paper width.: Max. 139,0 cm.

Paper weight: 80 – 125 g/m2.

Speed: without handles) Max. 170 bags/min - with handles Max. 130 bags/min (depend on condition).

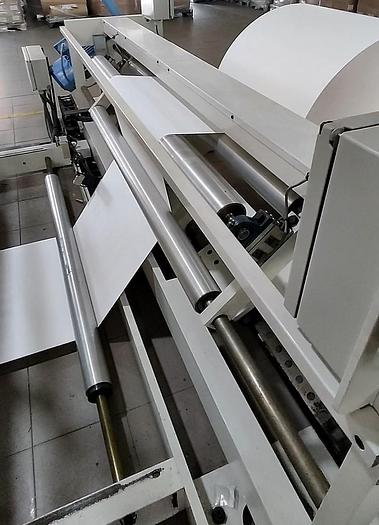

Max unwinder reels diameter: 120 cm.

Cut-off register control with Photo-electric eye for coverting pre-printed reels.

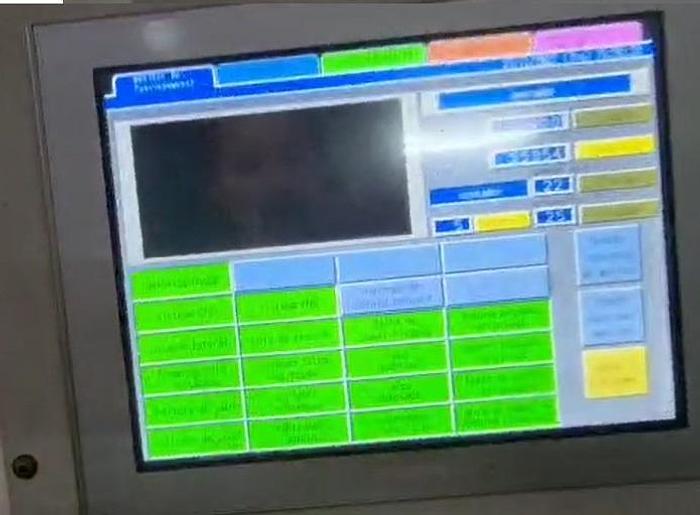

Bag size registration triggers simultaneous adjustments over NC (numerically controlled functions)

Registration of 320 kinds of size bags is possible with NC System

Cutting head for flush cut by eccentring rotating top kinfe

Power source voltage: VAC 50Hz 3 PH

Required air pressure: 0.5 Mpa x 400N litter/minute

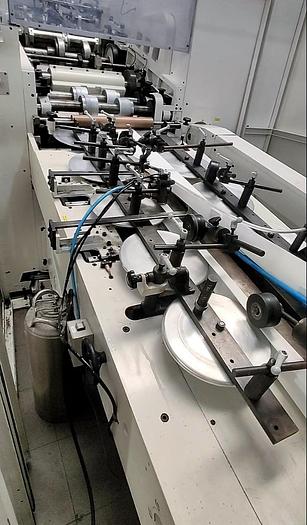

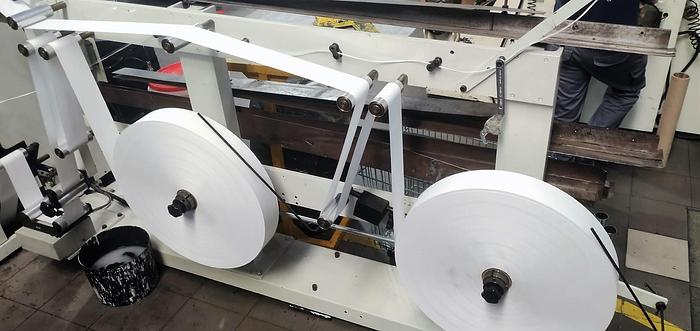

IN LINE TWISTED HANDLES UNIT NLI H607:

Handle cord Ø: 4 * 8 mm

Handle pitch: 95 mm

Handle cord lenght: 300 - 340 mm

Patch/cover strip dimensions: 190,5 mm (lenght) x 50 mm (height)

Handle height (including patch/cover strip): 150 - 170 mm

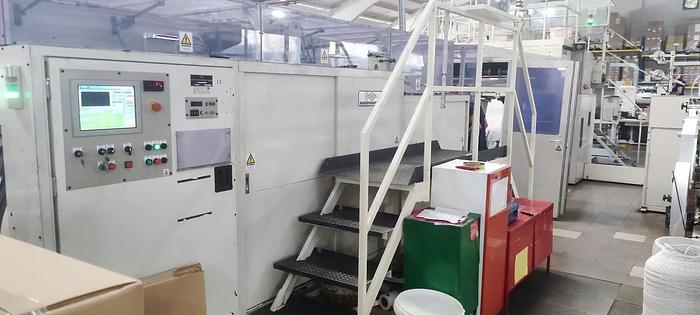

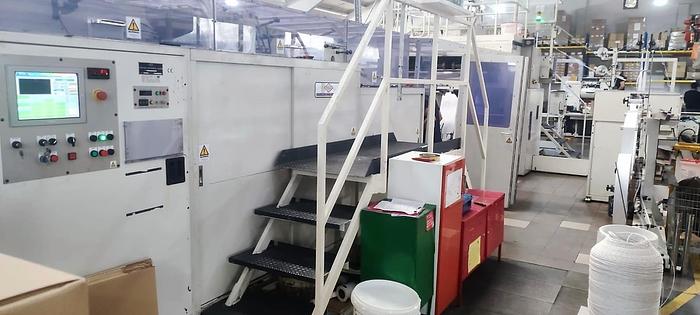

Visible in production.
