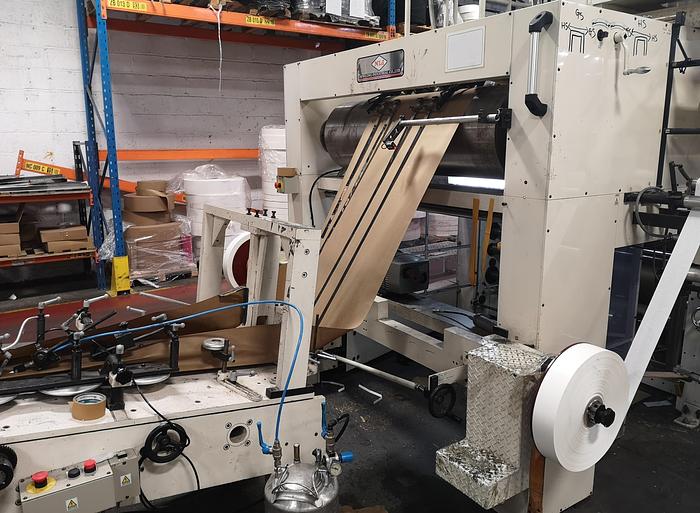

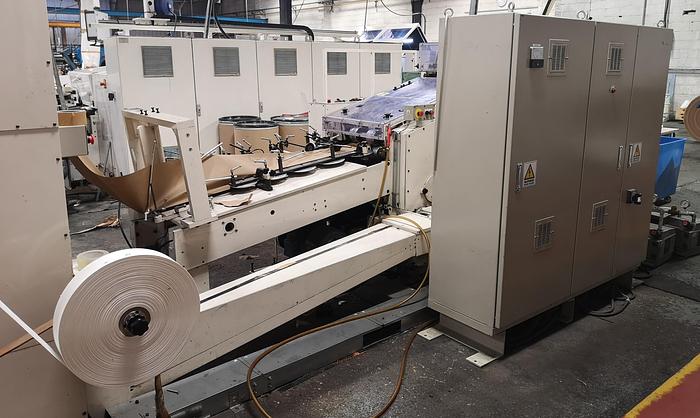

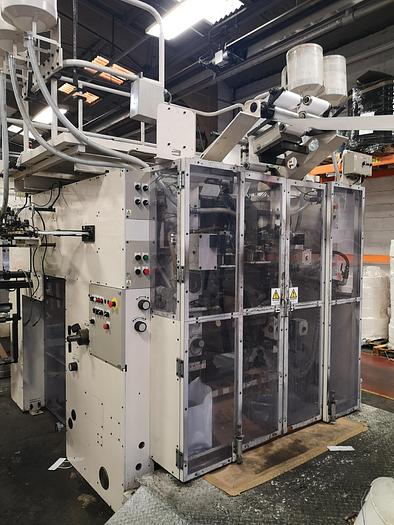

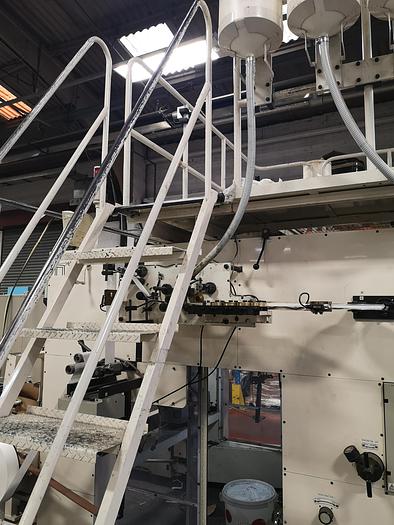

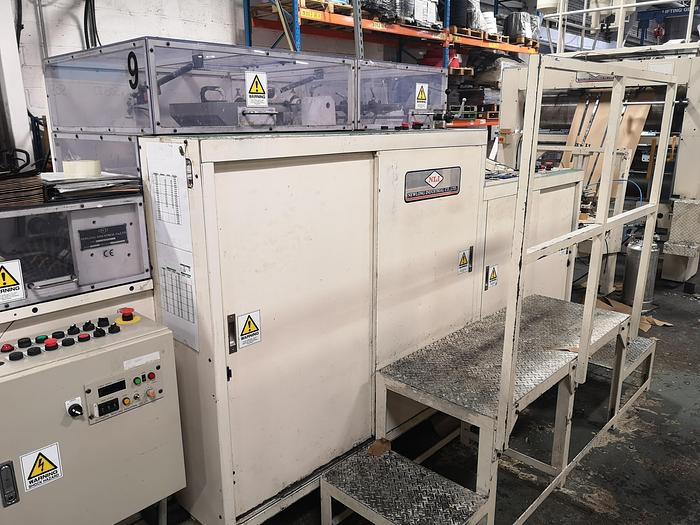

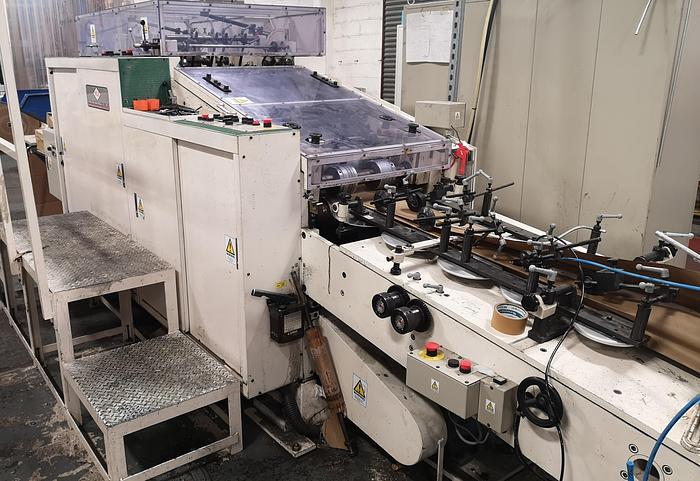

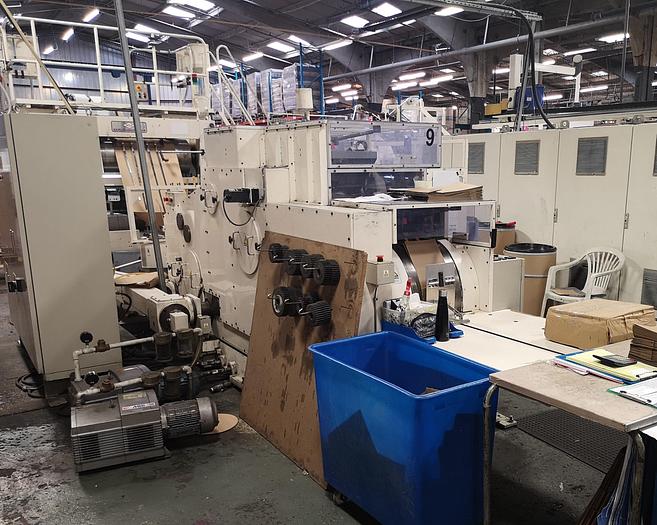

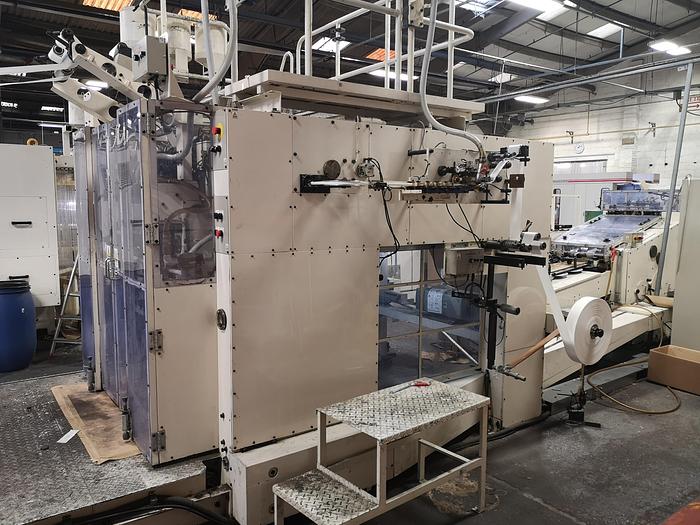

2014 NEWLONG 136T+508T - Roll fedsquare Bottom paper Bag Making Machine with flat handles unit
2014 NEWLONG 136T+508T - Roll fedsquare Bottom paper Bag Making Machine with flat handles unit
Location:Europe
orCall +39 346 4948054
Description

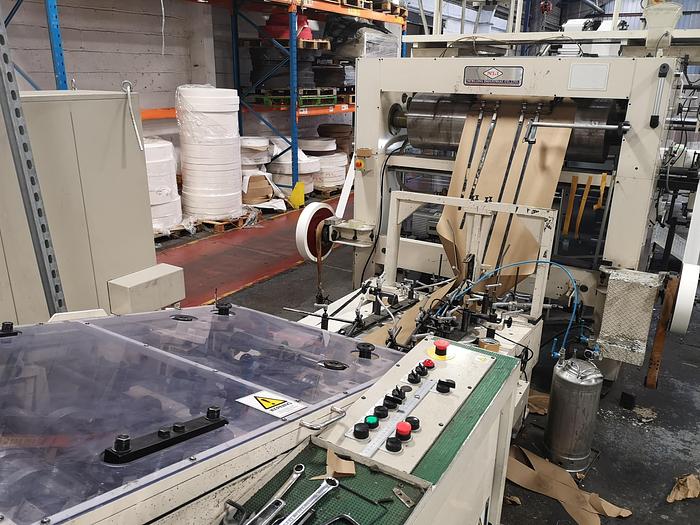

Pre-owned NEWLONG 136T+508T - roll fed square bottom paper bag making machine for the production of bags with flat handles or without handles.
The machine is visible in operationand available for sale.
Specifications

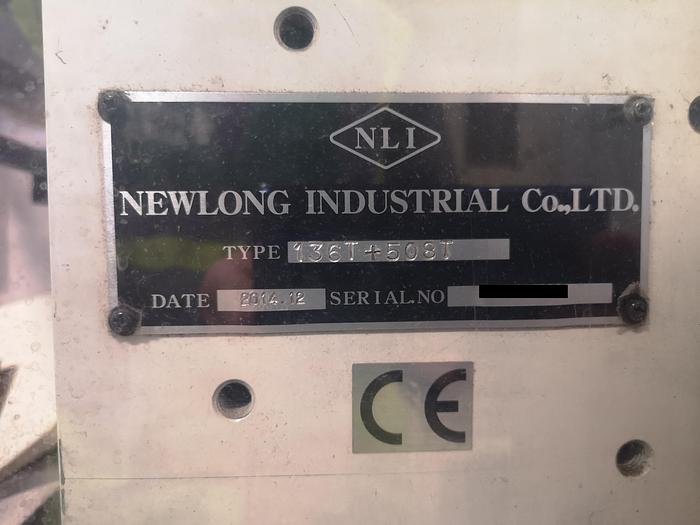

| Manufacturer | NEWLONG INDUSTRIAL CO.,LTD |
| Model | 136T+508T |
| Year | 2014 |
| Condition | Used (visible in production) |
| Max speed | Max. 180 bags/min (Depending on paper quality, bag size and on with or without handle) |
| Cutting Length (min - max) | 210 — 480 mm |
| Bag length (min-max) | 135 — 430 mm with concealed handle | 140 — 860 mm with unconcealed |
| Bag width (min - max) | 180 — 320 mm |
| Bottom width (min - max) | 60 — 160 mm |
| Paper width | Max. 1000 mm |
| Paper Roll Dia. | Max. 1200 mm |
| Applicable Paper Weight (min - max) | 70 — 125 g/m |
| Specification for Handle | Paper Roll Dia.: Max. 1,300 mm | Handle Width: 13 mm | Applicable Paper Weight (min - max): 60 — 70 g/m | Handle Patch sizes: (patch lenght: 52 mm| Paper width: 160 mm fixed | Paper Roll Dia. Max. 1200 mm | Paper Weight 80 — 100 g/m) |

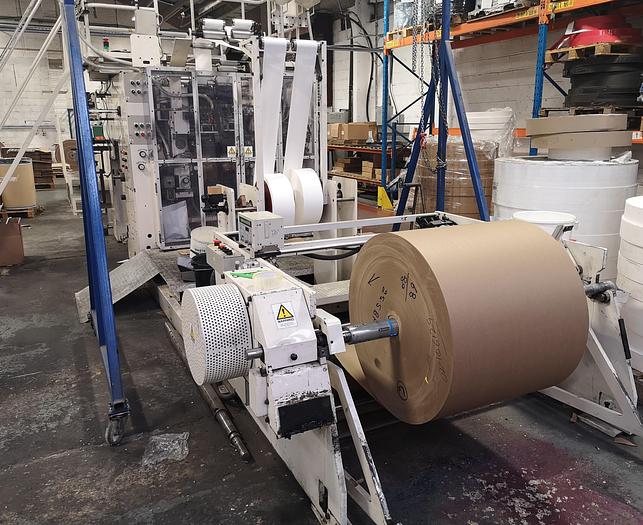

| Unwinding Unit | Complete with air cylinder type roll lifting device and tension controller with powder brake. Also small roll detection device and paper roll shaft with stoppers for ID 76mm are attached |
| Handle Making Unit (Model 508T) | Complete with handle paper unwinding unit, folding handle making unit, reinforcement patch paper unwinding unit, patch paper pasting unit, handle perforator, handle press roll unit and nozzle system longitudinal pasting unit |
| Longitudinal Pasting Unit | Complete with nozzle system longitudinal pasting unit |
| Forming Unit | Complete with forming plates and gusset adjusting rolls |
| Photo-Cell Device | Pre-printed paper is converted by this unit |
| Main Unit | Complete with web draw unit, cutting unit, opening cylinder and bag cylinder. Cutting length can be changed by replacing of the cutting change gear (in 10 mm steps). Straight cut knife is incorporated. Main motor is 15Kw. |
| Delivery Unit | The delivery unit is arranged for the delivery of bags vertically to be equipped with bag counter of 25 bags/set or 50 bags/set by digital control |
