MULTIPRESS FLEXOTRONIC MOD. 1540-1200/8 - 8 col. C.I. flexo (1500 mm)

MULTIPRESS FLEXOTRONIC MOD. 1540-1200/8 - 8 col. C.I. flexo (1500 mm)

Location:Europe

Available quantity:1

orCall +39 346 4948054

Description

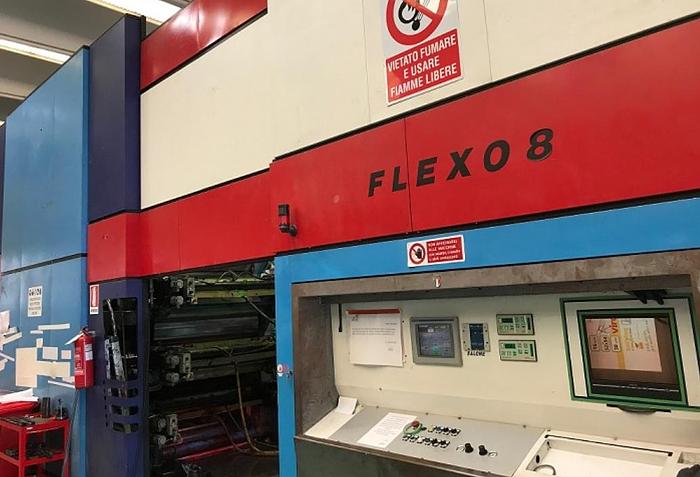

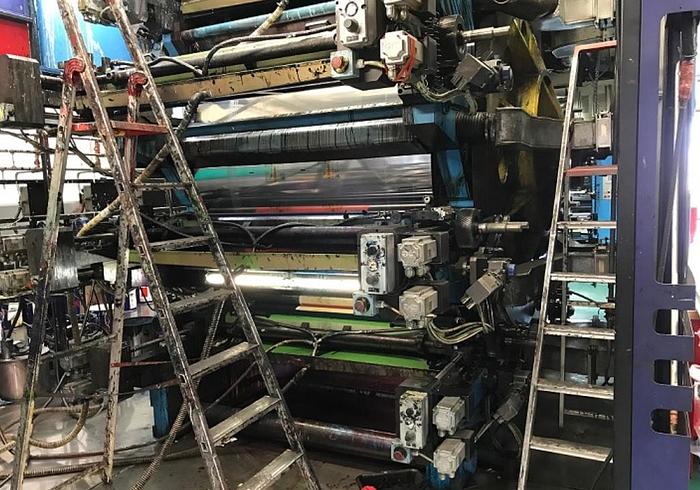

Used 8 colors central drum flexographic CI MULTIPRESS Model FLEXOTRONIC N.C. “MAGNUM” MOD. 1540-1200/8.

The machine is dismantled and stored in the warehouse.

Available for sale.

Specifications

ManufacturerMULTIPRESS
ModelFLEXOTRONIC MOD. 1540-1200/8 - 8 col. C.I. flexo (1500 mm)
ConditionUsed (disassembled & stored in warehouse)
TypeC.I (central drum) flexo
Number of colors8
Max print width1500 mm
Web width (material passage)1540 mm
Printing repeats350 – 1200 mm
* Max roll diam.1000 mm
* Expanding shafts76–95mm; 152–171mm
MaterialPE, PP, OPP, PET, Paper

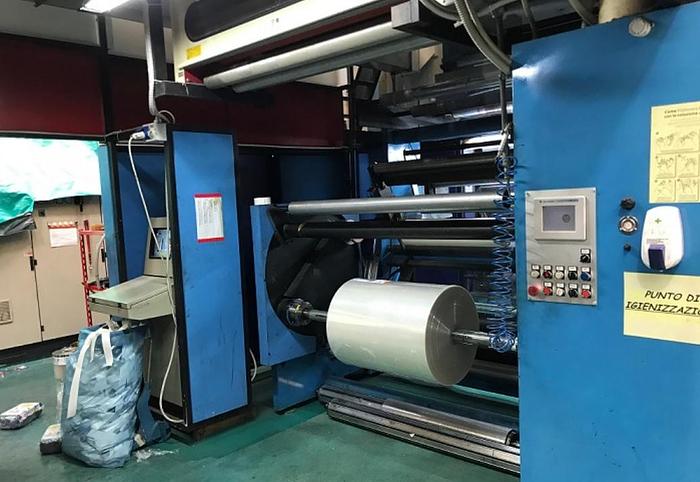

UnwinderDuplex unwinder (bidirectional) | Max roll diam.: 1000 mm | Expanding shafts: 76–95mm; 152–171mm
RewinderDuplex unwinder | Max roll diam.: 1000 mm | Expanding shafts: 76–95mm; 152–171mm
Additional informationTape guide in input "Kamberoller" | Table guide in output | “FLEXOMAT” chamber doctor blade with screen cylinder diam. 186mm | Pre-register with auto-engage | Extended drying tunnel | 2 direct gas burners | Tunnel ventilation with "DRYNER" | Electrical panel with "HERZAINER" | High definition camera | High definition monitor 20-21" | Central drum diameter: 2300 mm = 8 C. | Safety protections | Compressed air requirement: 8 BAR – 50 l/min | Cooling water: thermoregulation on closed circuit unit | Machine actually dismantled and stored in warehouse
Visible in operationNo (Machine dismantled)
