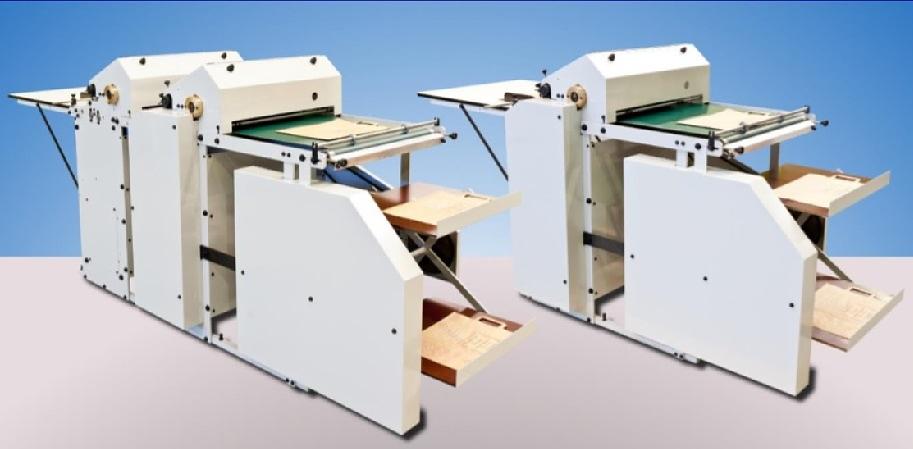

FLEXO PRINTING MACHINE FOR CARRIER BAGS

This flexo printing machine is very practical for printing small or medium-sized runs of paper bags, plastic bags, woven and non woven bags or thin corrugated board in one to three colours in register using a conveyor.

This machine can use water or alcohol or solvent base inks.

MAIN SPECIFICATIONS

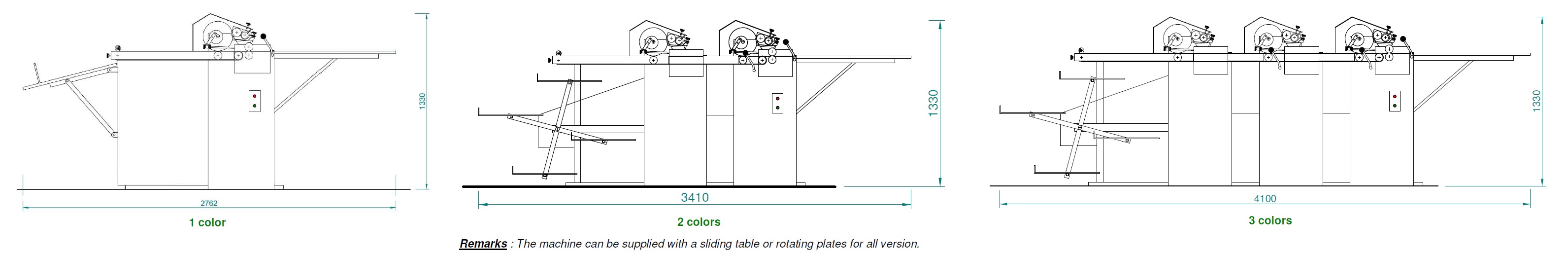

Number of printing units: 1 up to 3 colors

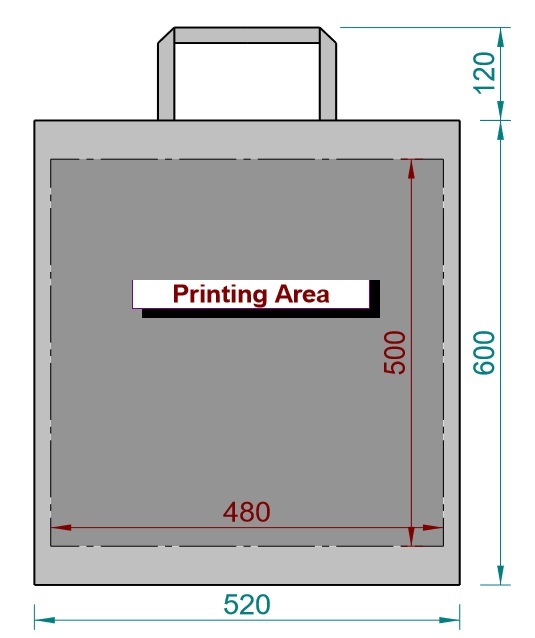

Maximum bag size: Width: 525 mm x Length: 600 mm
Maximum print surface: Width: 480 mm x Length : 500 mm
Maximum thickness of the handle: 15 mm
Maximum handle height: 120 mm
Sheet positioning accuracy: +/- 1 mm
Color registering accuracy: +/- 1 mm
Maximum thickness of the sheet: 5 mm
Stereo thickness (with glue): 3 mm
Maximum speed: 900 up to 2 400 bags per hours
Main electric power supply: 1 x 240V 50Hz
Installed power: 0.55 kW
Temperature: 5 à 40°C
Noise: 74 dB (A)

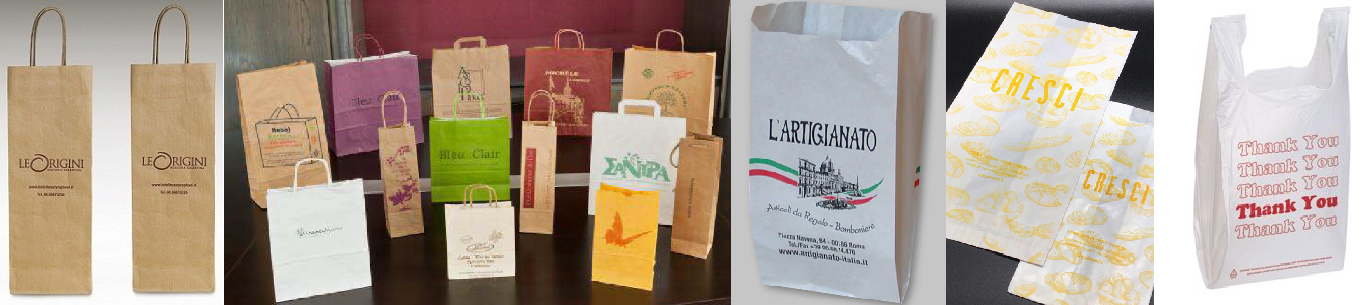

MATERIALS TO PRINT

The machine is designed to convert a wide range of materials as:

Flat handle paper bags (Kraft, white and colored).
Twisted handle paper shopping bags (Kraft, white and colored).
Twisted handle paper wine bag.
Square bottom bags with or without handles
Colored glossy paper euro totes.
Flat & satchel paper bags.
Plastic bags.
Woven and non woven bags.
Thin corrugated board - Pizza boxes.

BAGS FEEDING

a) Manual (Standard): The bags are manually placed in front of locating indexes for feeding into the machine. For a good print registration, the bags are transferred on a conveyor belt between the colors.

b) Stream Feeder – Authomatic (Optional): The operator places bags into the automatic stream feeder, which holds up to 200 bags. A set of suction pads then picks up each bag and places it onto a conveyor belt. Once in position, the front fingers retract, and the nip rollers pull the sheet into the machine. The stream feeder operates in sync with the machine's speed.

IMPRESSION

Print registration to the bag edge is done by front fingers and lateral guide
The bag is carried out through the printing units on a flat belt.
The printing units are guarded with transparent covers electrically controlled. Opening while the machine is in operation, will automatically stop it.
The printing is done by standard flexo plates.
Each flexo printing unit is equipped in standard with an inking and a wiper cylinder Anilox.
The machine can be used with water or alcohol inks.

OUTFEED

a) Sliding table (Standard): After printed, the bags are collected on a sliding table.

b) Rotating plates (Optional): After printed, the bags are collected on 4 rotating plates. The time given by a complete rotation is sufficient for the ink to dry (suggested for conditions of drying difficulties).

MACHINE FROM EU

The machine in conformity with the requirements of the following European Directives

2006/42/EC: Directive of the European Parliament and of the Council of 17 May 2006 on machinery and amending Directive 95/16/EC..

EN ISO 13849-2

EN 60.204

EN 13857

2006/95/EC: Directive of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of the Member States relating to electrical equipment designed for use within certain voltage limits.
97/23/EC: Directive of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment.
2004/108/CE: Directive of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC.

VIDEO

Flexo printing press for pre-made bags
