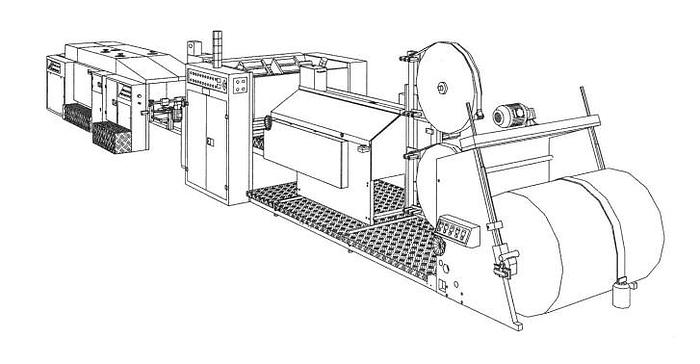

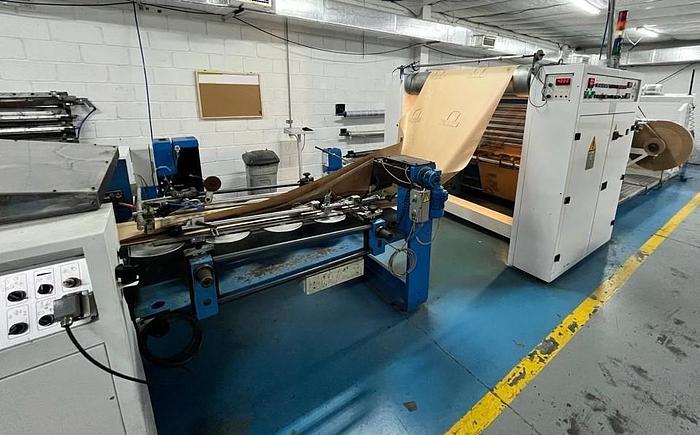

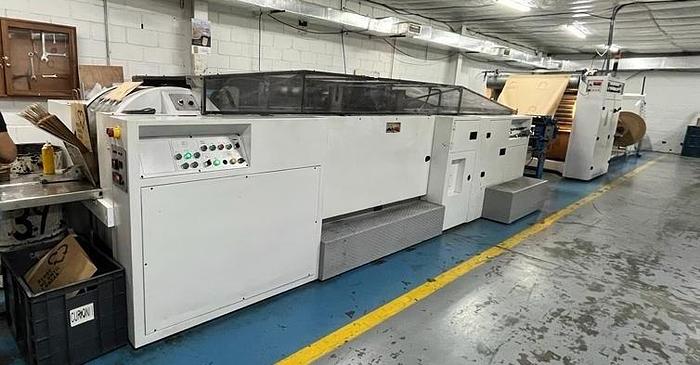

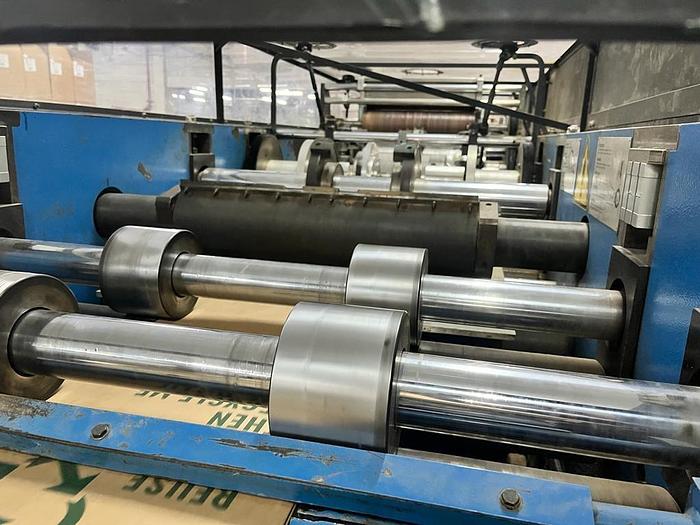

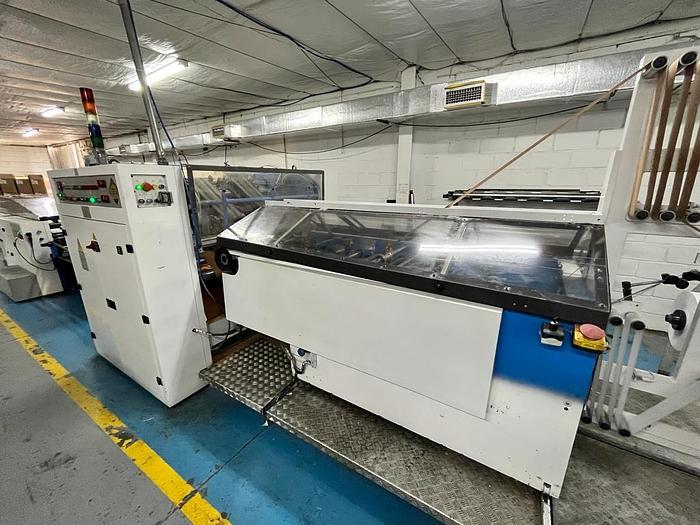

1995 CURIONI SUN MASTER 540 - Reel fed Square bottom paper bag making machine with in line twisted handle unit

Sold

1995 CURIONI SUN MASTER 540 - Reel fed Square bottom paper bag making machine with in line twisted handle unit

Location:South America

Available quantity:1

Description

Manufacturer: CURIONI

Model: SUN MASTER 540

Year: 1995

Type: Reel fed Square bottom paper bag making machine with in line twisted handle unit


Technical specification of the paper bag making machine SM540

·         Bag width: 220 – 540 mm (Bag width with handles: 240 – 540 mm)

·         Bag length: 320 - 650 mm (Bag length with handles: 320 - 550 mm)

·         Bottom width: 80 - 200 mm

·         Cut length: 400 - 780 mm

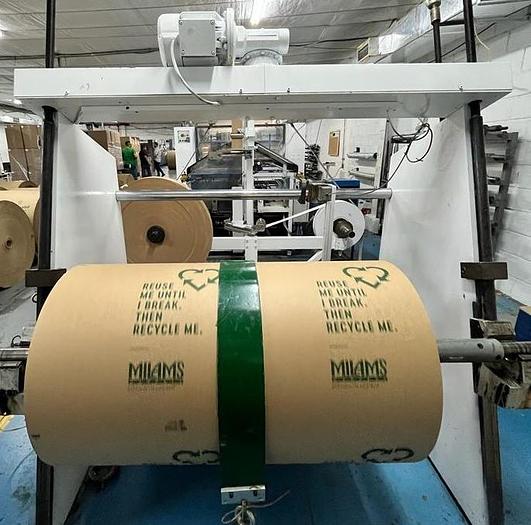

·         Reel width: 720 - 1430 mm

·         Max. diameter of the reel: 1500 mm

·         Inner core diameter: 76 mm

·         Weight of paper: 80 -130 gsm

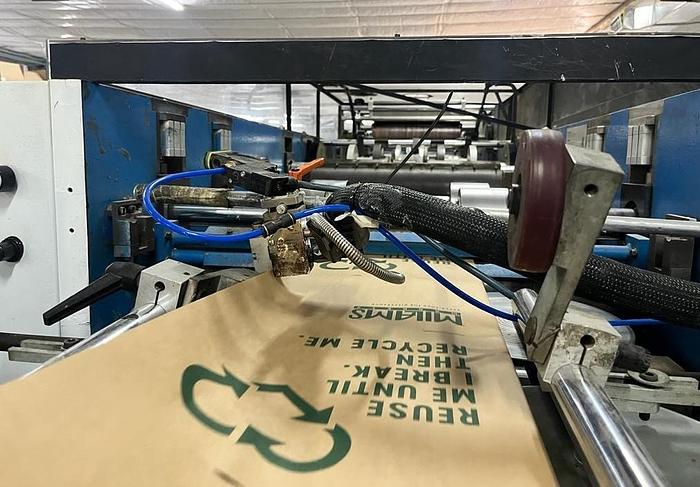

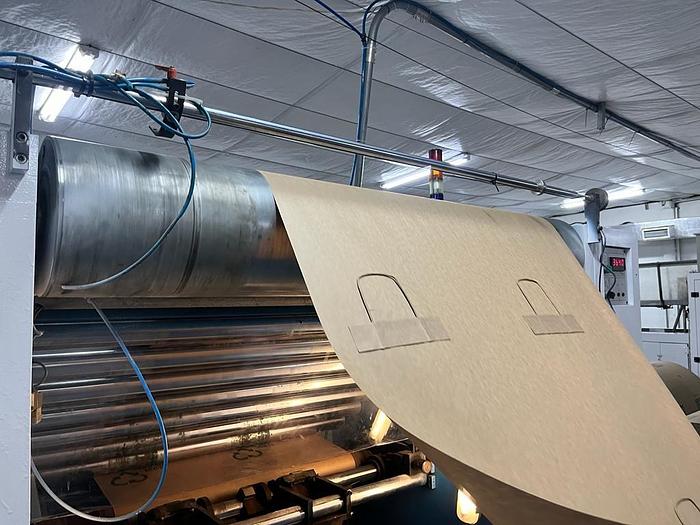

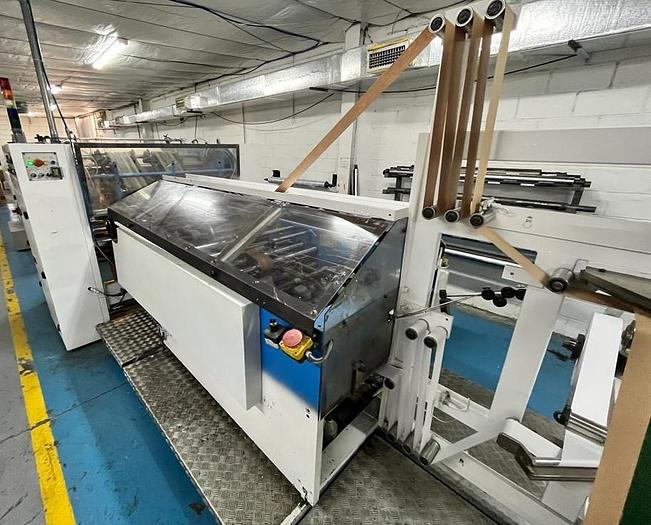

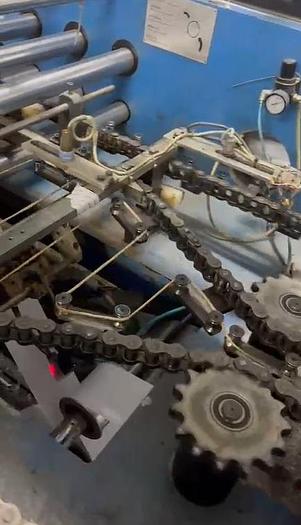

Technical specification of the twisted cord handle making unit

·         Type of handle twisted-paper cord or cotton with a twisted paper core.

·         Twisted paper cord diameter:  4 - 5 mm

·         Handle width:  100 mm

·         Patch height: 50 mm

·         Patch length: 200 mm

·         Reels width:  100 mm

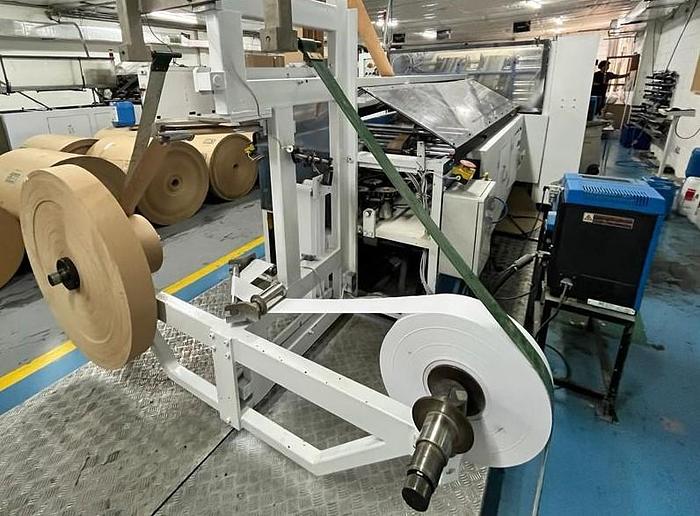

·         Max. diameter of paper reels for patches:  1050 mm

·         Inner core diameter:76 mm

·         Weight of usable paper for patches: 90 -130 gsm

General technical features

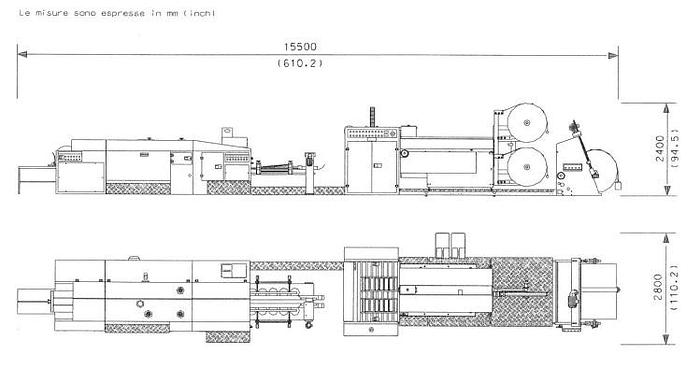

·         Dimensions of the machine: length 15500 mm, width 2800 mm, height 2130 mm.

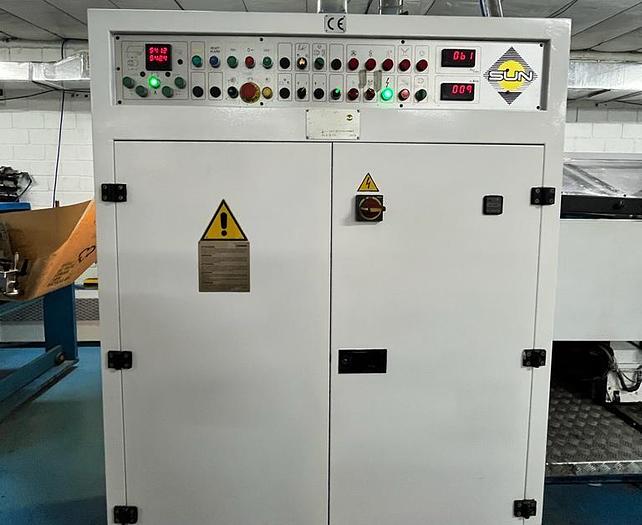

·         Total installed electrical power: Kw 35.

·         Power supply three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5%.

·         Compressed air supply 600/700 kPa, dry and clean.

·         Compressed air consumption: 100 Nl/min

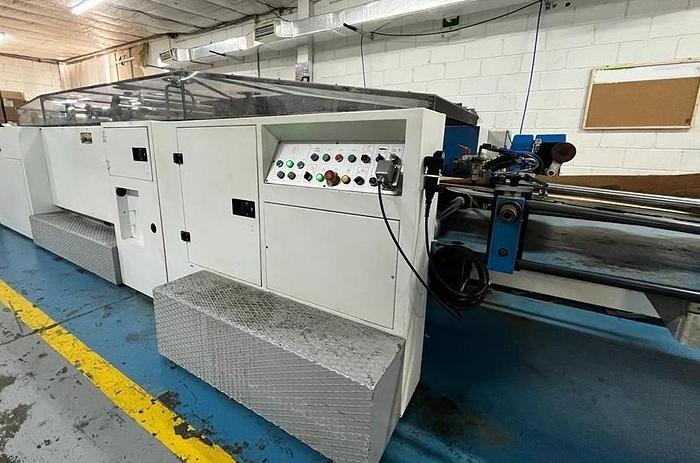

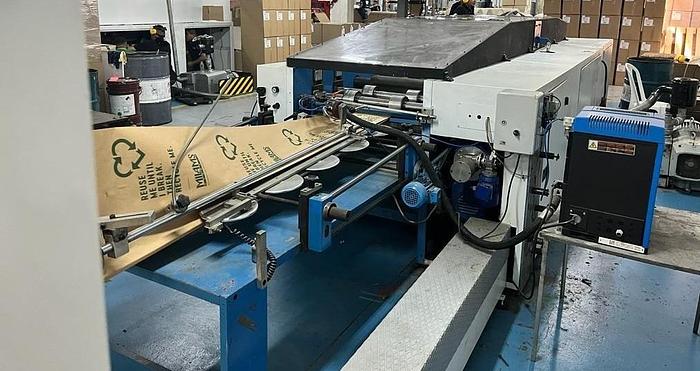

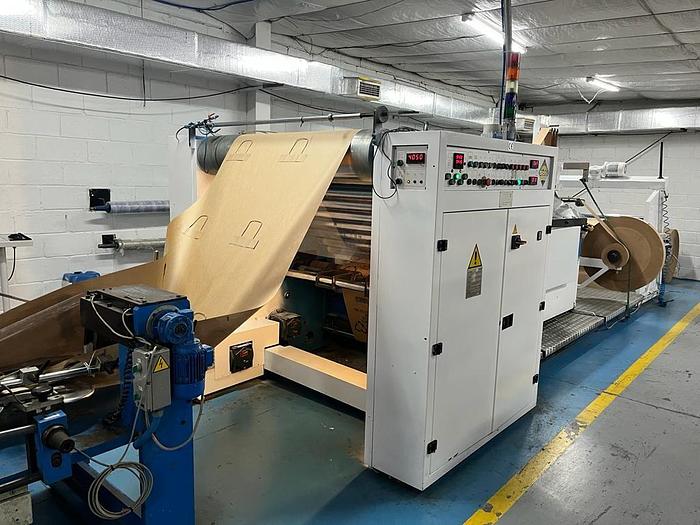

Visible in operation: Yes

Note: The machine can be reserved (first come first served) and is available for dismantling in the end of August 2023.


Only our customer can have full support directly from CURIONI SUN for remantling/spare parts/documentation etc... ( https://www.curionisun.it/usato/ )

Specifications

ManufacturerCURIONI
ModelSUN MASTER 540
Year1995
ConditionUsed (visible in production)
