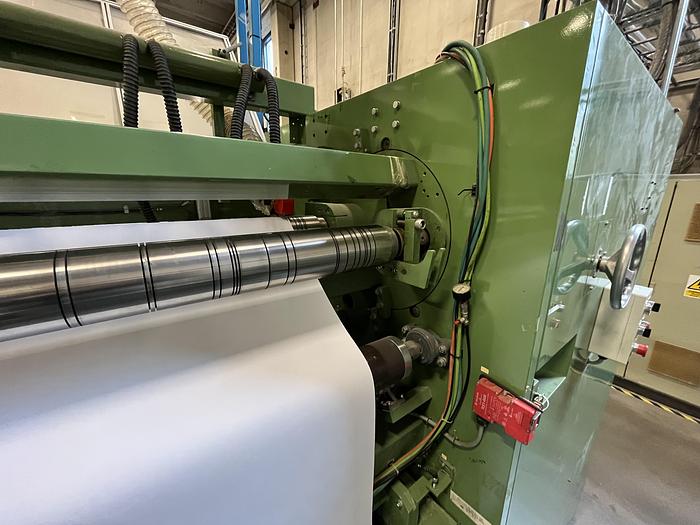

2000 Dusenbery Europe Ltd. slitter rewinder mod. 375

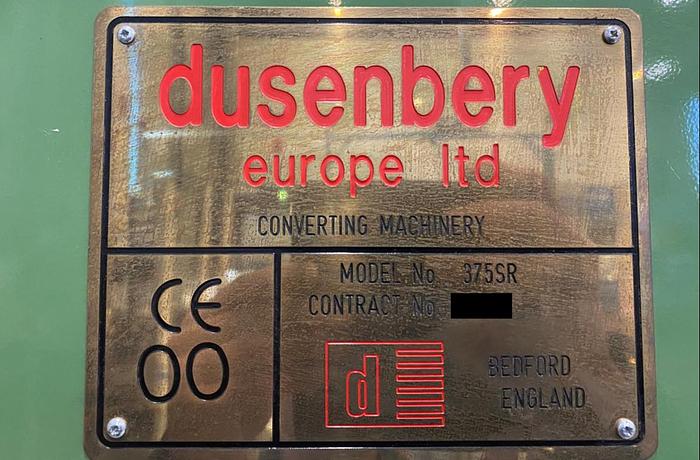

Manufacturer: Dusenbery Europe Ltd.

Model: 375 SR

Type: Three mandrel centre winding slitter rewinder

Year: 2000

MACHINE PARAMETERS

Minimum Web Width: 900 mm

Maximum Web Width: 1920 mm

Maximum Rewind Diameter: 300 mm

Rewind Core Diameter [mm]: 50 /76

Minimum Core Length:210 mm

Maximum Core Length: 920 mm

Maximum Machine Speed: 600 mpm

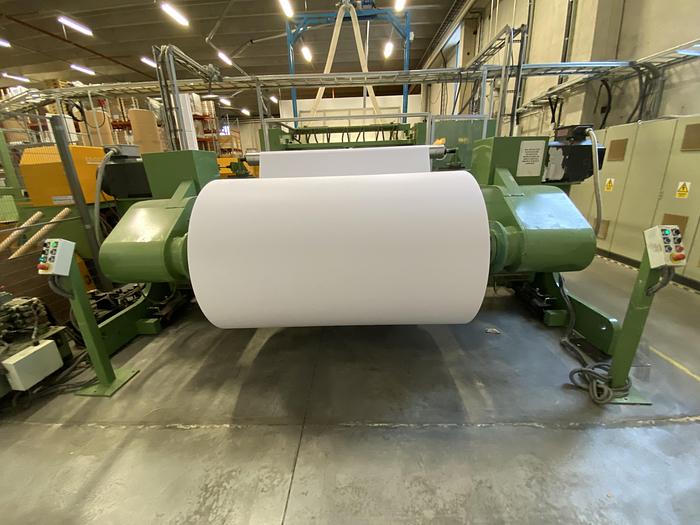

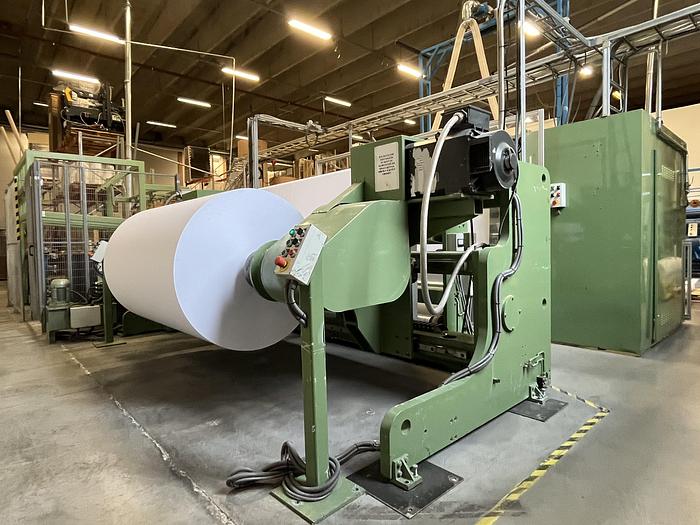

Maximum Unwind Diameter: 1500 mm

Minimum Unwind Core Length: 900 mm

Maximum Unwind Core Length: 1920 mm

Unwind Core Diameter: 152 mm

Maximum Mill Roll Weight: 2500 Kg

Maximum Edge Guide Movement: +/- 50 mm

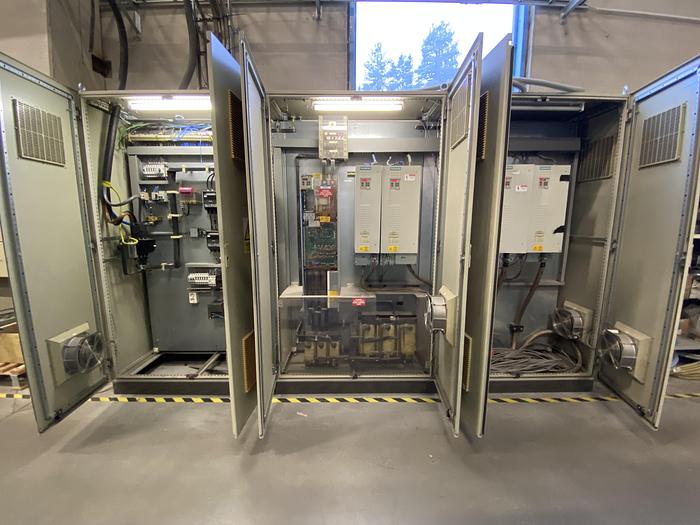

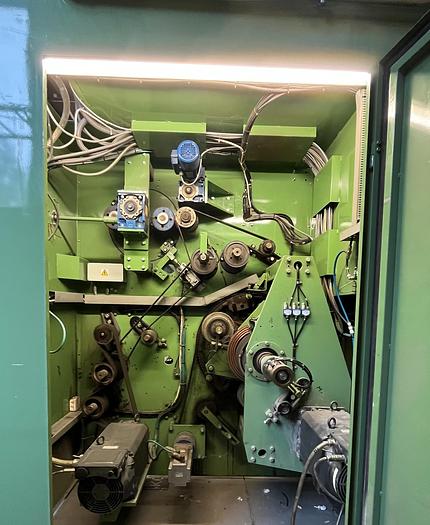

SIEMENS drive controls

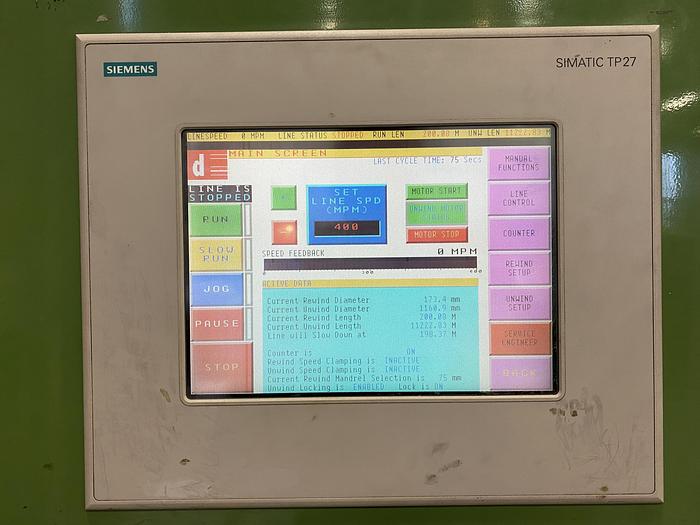

The machine is controlled by the Siemens S7 PLC system

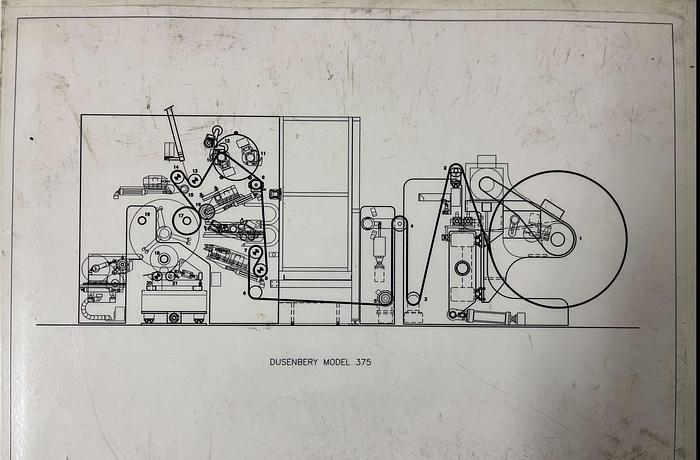

The DUSENBERY Model 375 is a three mandrel centre winding slitter / rewinder. Each mandrel indexes to three positions:

 Position 1 : Core loading | Position 2 : Rewinding and cut off | Position 3 : Tail winding and stripping
