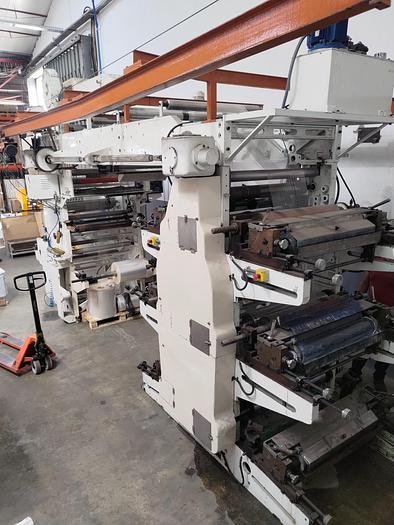

WINDMÖLLER & HÖLSCHER (W&H) 6 colours stack Flexo 780 mm

WINDMÖLLER & HÖLSCHER (W&H) 6 colours stack Flexo 780 mm

Location:Europe

Available quantity:1

orCall +39 346 4948054

Description

Brand : WINDMÖLLER& HÖLSCHER (W&H)

Year : approx.1970/1980 (estimated)

Status : Used in good condition.

N.º Colors : 6

Type : Stack type flexographic printer

Show All

Specifications

ManufacturerWINDMÖLLER & HÖLSCHER (W&H)
Model6 colours stack Flexo 780 mm
ConditionUsed
TypeStack type flexographic printer
N.º Colors6
Max. web width800 mm
Max. print Width780 mm
Maximum unwinder diameter1000 mm
Maximum rewinder diameter1000 mm
Printing repeats (min. - max.)300 - 1500 mm
Mechanical speed250 meters/minute
MaterialPE, PP, OPP, PET, Paper
Pumps2 Hydraulic
Roller lifting clichésYes
Corona treatmentYes
Thick clichés2,54 mm.
Gear moduleOne tooth one cm
Two-side printing systemYes
Number of anilox6 - 100 lines
InkEasy disassembly
Drying systemElectric
Tension controlYes
Blade alignment controlYes
Weight (approx.)12/15 Tons
Dimensions of the machine (approx)Width 3.000 mm | Length 7.000 mm | Height 3.800 mm
Energy required25 kW
