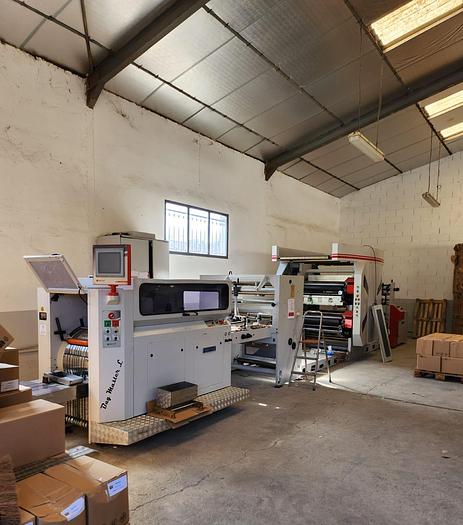

2017 SOMTAS BAG MASTER L - FLAT & SATCHEL paper bag machine with 4 col. flexo

Manufacturer: SOMTAS Converting Equipment

Model: BAG MASTER L/INLINE

Year: 2017

4 color Stack Type Flexo Printing Unit (servo motor controlled)

Print mark sensor for pre-printed rolls

Servo adjustable delivery drum

12 inch touch screen

High performance: 150 m/min – 600 bags/min running speed

Repeat cut: 160 – 780 mm

Bag length: 150 – 760 mm

Bag width: 80 – 350 mm

Gusset depth: 12 – 80 mm

Folding buttom: 20-30 mm

Paper thickness: 25-100 gr m/2

Max paper width: 900 mmm

Max paper reel diameter: 1250 mm

Max paper reel weight: 1 200 kg

Paper reel core diameter: 76 mm

Machine dimensions: 1780 x 11000 mm x 2550 mm

Machine weight: Net 8.5 Tonn

Cylinders 4x 320 / 4x 340 / 4x440 / 4x550 / 4x650

Plates width: 80 / 100 /110 /130 / 150 / 180 / 200 / 230 / 270 / 320

Machine assembled but no longer visible in operation.
