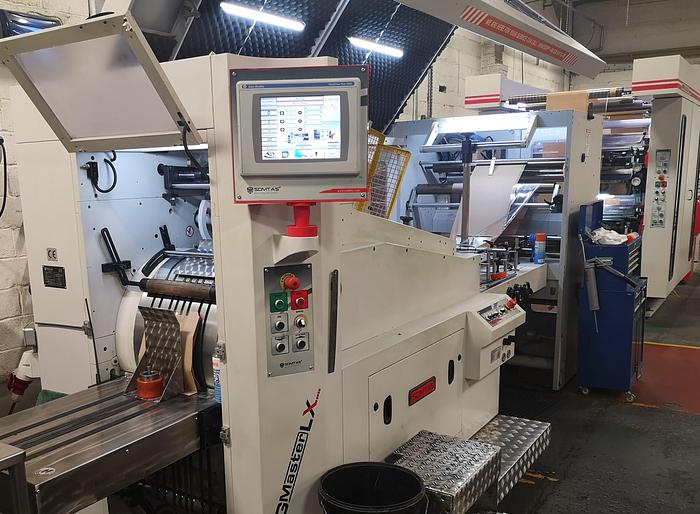

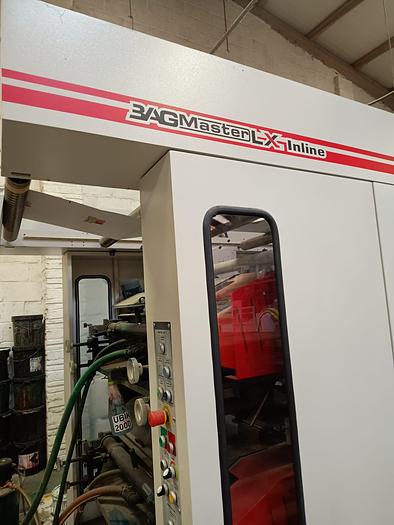

2022 SOMTAS BAG MASTER LX SERVOTECH | with 4 COL. FLEXO | with WINDOW DEVICE - flat & satchel paper bag machine
2022 SOMTAS BAG MASTER LX SERVOTECH | with 4 COL. FLEXO | with WINDOW DEVICE - flat & satchel paper bag machine
Location:Europe
Available quantity:1
orCall +39 346 4948054
Description

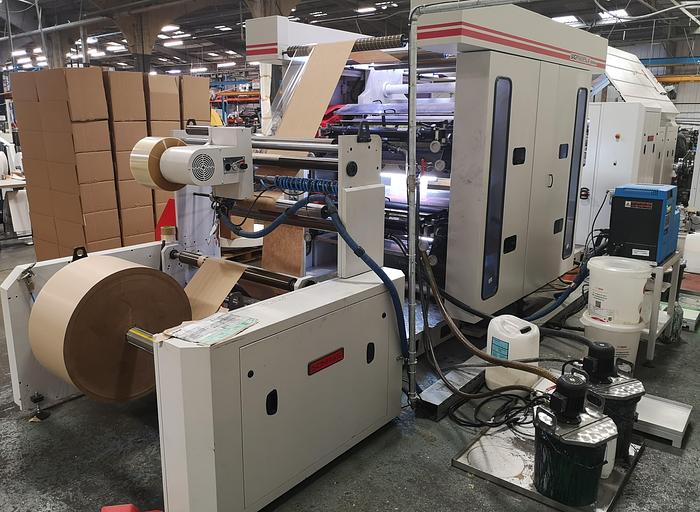

Flat and satchel paper bag making machine with in line flexo printing unit and Bopp unwinder for bags with window.
Easy to use, quick integration, common point of engineers, fast and low cost production are brought together in this machine.
This pre-owned SOMTAS BAG MASTER LX SERVOTECH is in perfect working condition and available for sale from the first owner.
Specifications
| Manufacturer | SOMTAS |
| Model | BAG MASTER LX SERVOTECH | with IN LINE 4 COL. FLEXO | with WINDOW DEVICE - flat & satchel (V bottom) paper bag machine |
| Year | 2022 |
| Condition | Used |
| Type | Flat & satchel paper bag making machine |
| Bag width | 80 - 350 mm |
| Cutting lenght | 160 – 770 mm |
| Bag length | 150 – 760 mm |
| Gusset depth | 12 – 80 mm |
| Folding bottom | 20 - 30 mm |
| Speed | Capacity (max) | 250 m/min running speed | 1200 bags/min capacity |
| MATERIAL SPECIFICATION: | Max reel paper width: 900 mm | Paper thickness: from 25 to 100 gr/m2 | Max reel paper weigth: 1200 Kg | Paper reel core diameter: 76 mm |

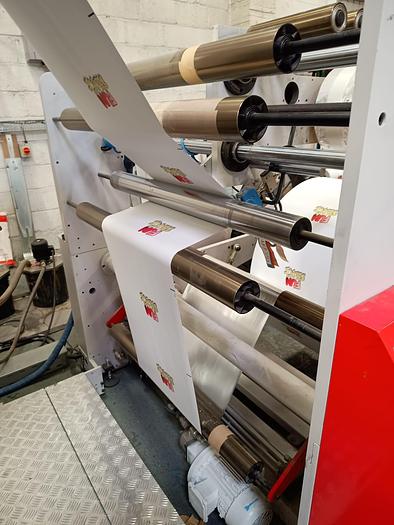

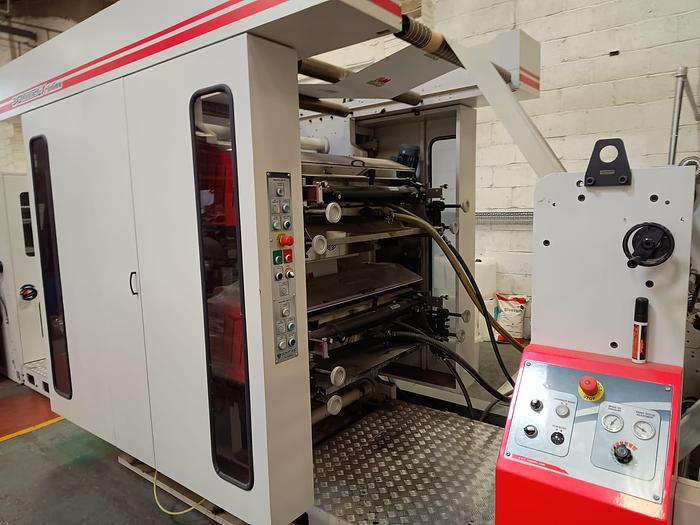

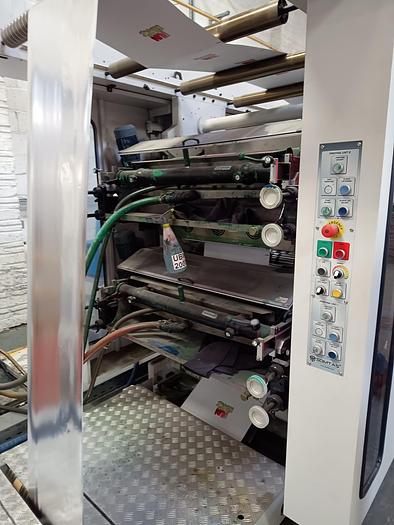

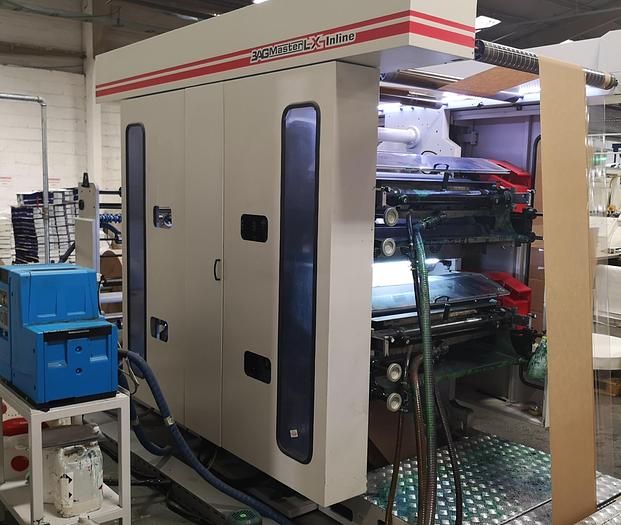

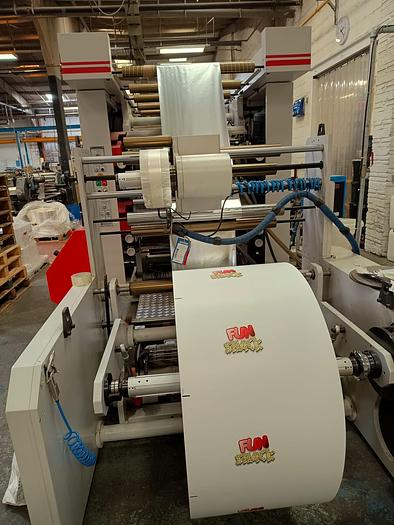

| IN LINE FLEXO | colors n.: 4 | Ink: water based | Paper width: 950 mm | Print width: 900 mm | Print speed: 250 m/min | Printing repeat (min - max): 350 - 770 mm | Printing accuracy: +/- 0,5 mm | Gear pitch: 10 mm | Servo motor controlled draw unit with puller wheels | Printing position on/off: pneumatic | Drying system: 4 infrared heaters | Anilox ceramic cylinders | Dr. chamber blade system BM-DRD-900 |

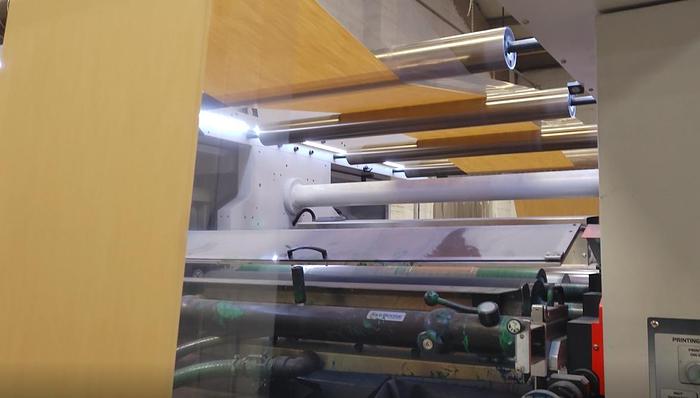

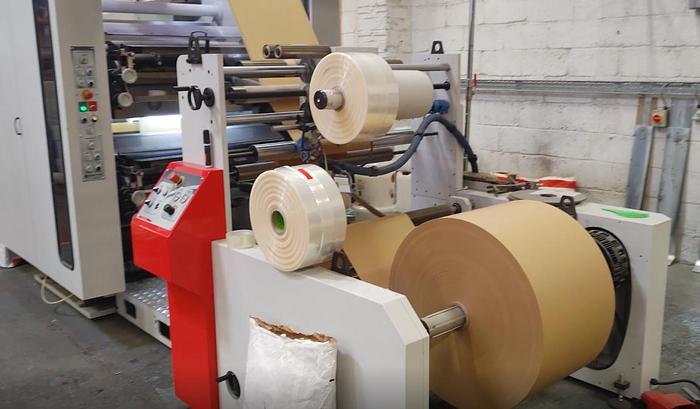

| BOPP UNWINDER for making bags with window | Bopp unwinder tension controller / pneumatic /automatic controlled by dancing roller and airbrake | Bopp film airshaft: 250 mm wide for 200 mm wide film | Bopp airshaft diameter 76 mm for 600 mm film max diameter | Bopp film web guide/manual | Cold glue disc system with glue disk and glue tray |
| HOT MELT GLUE SYSTEM | Hot melt glue application to increase the production of paper bags from 100 bags/min to 250 bags/min with window strip in the middle or on the side of the bags. |
| LATERAL CONTROL | Used to move electronically millimiters left/right whole flexographic unit 4 colors. |
| Visible in operation | Yes |
