1996 Strachan Henshaw 1400 DK Sheeter
1996 Strachan Henshaw 1400 DK Sheeter
Location:
orCall +39 346 4948054
Description

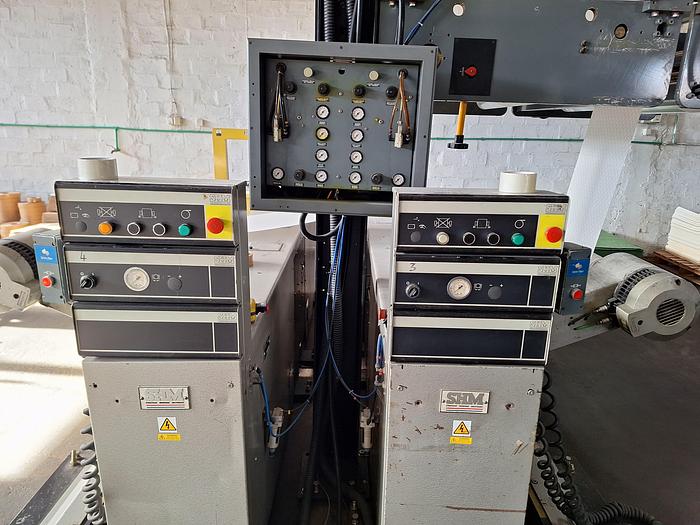

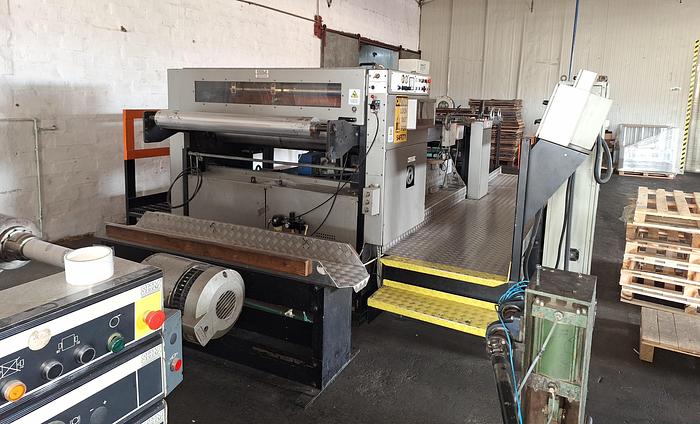

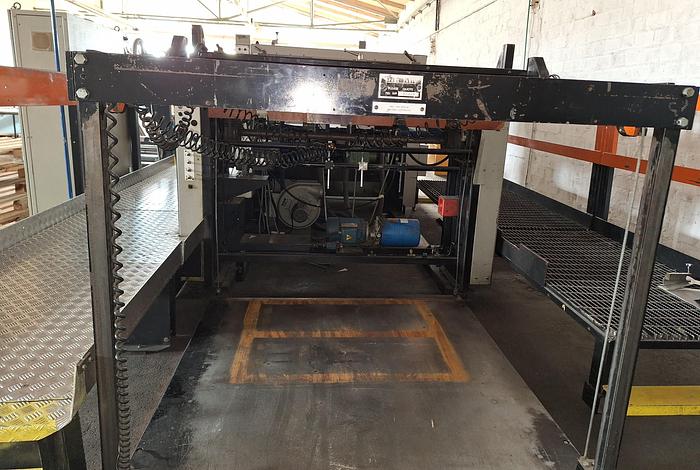

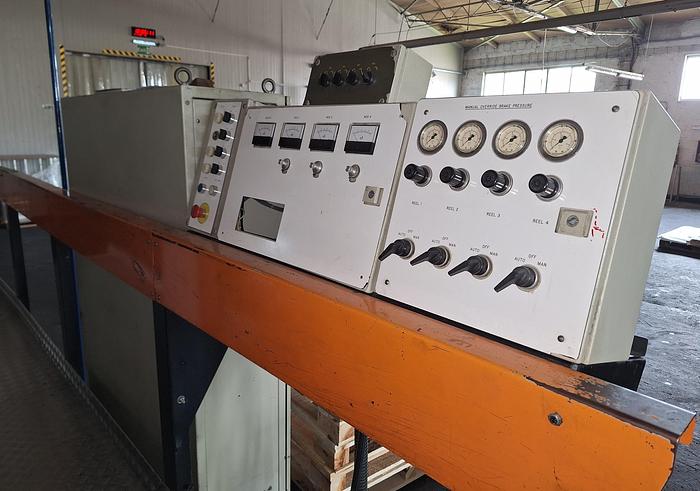

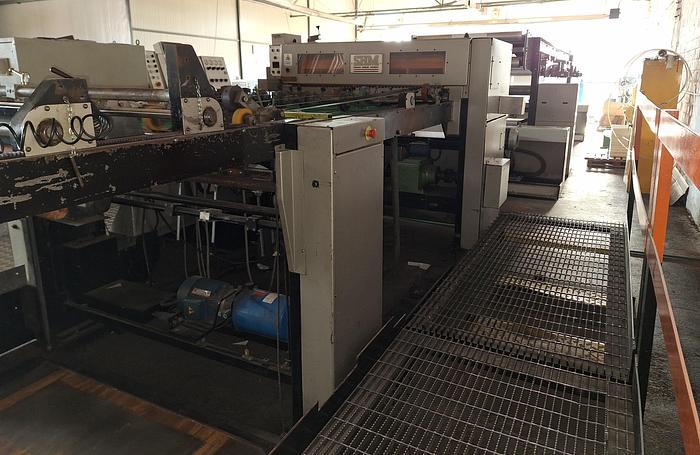

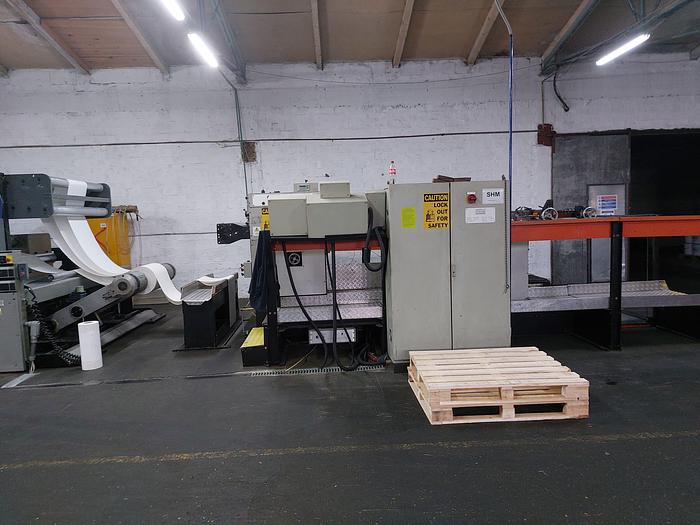

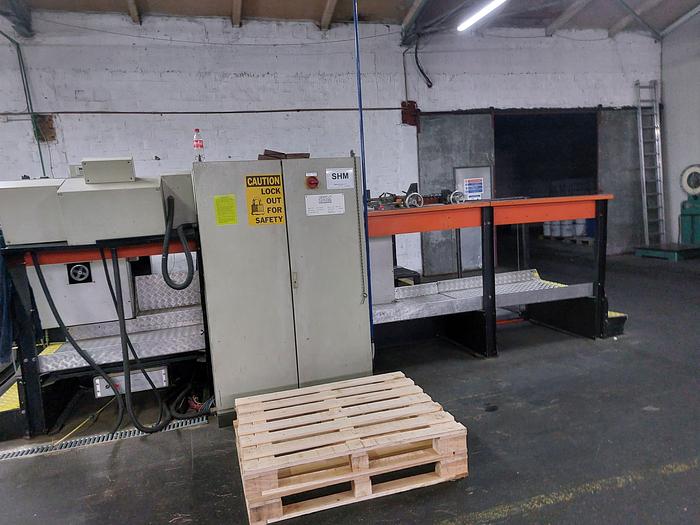

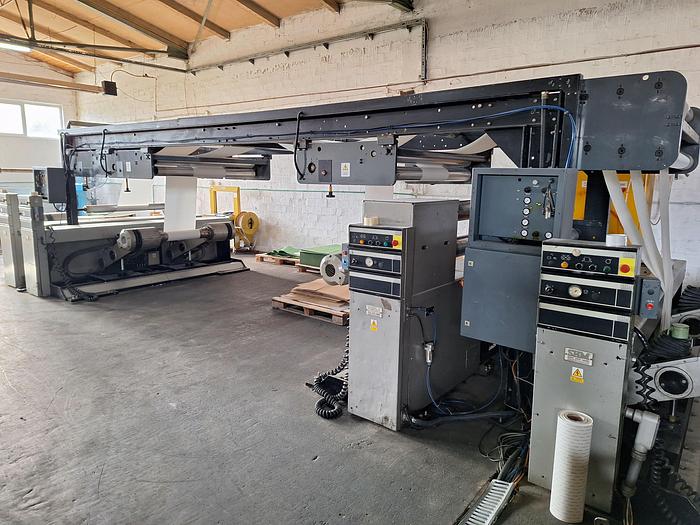

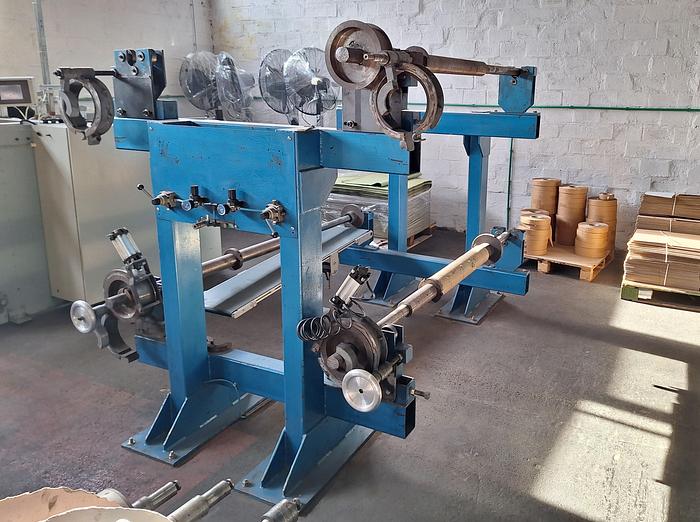

Second hand Strachan Henshaw 1400 DK SHEETER with 4 driven unwinds and 4 non-driven unwinds.
Tab inserter system replaced in 2015.
The Strachan Henshaw 1400 is a sheeter machine commonly used in industrial applications to process materials such as paper, plastic etc..
It can cut material width up to 1400 mm in sheets from 350 mm up to 750 mm lenght.
Specifications
| Manufacturer | Strachan Henshaw |
| Model | 1400 DK Sheeter |
| Year | 1996 |
| Condition | Used |
| Maximum web width | 1400mm (55") |
| Min. cutting lenght(sheet lenght) | 350 mm |
| Max. cutting lenght (sheet lenght) | 750 mm |
| Paper weight (per sheet) | 28 – 80gsm, minimum 100gsm under the knife |
| Knife load maximum with multiple webs of paper | 500 gm/m² |
| Knife load maximum with single web of card | up to 400 gm/m² depending on card density and cut quality required |
| White web sheet length accuracy | ±1mm up to 1000mm sheet length and ±1% over 1000mm sheet length for sheets from the same reel under steady running and tension conditions and using correct operating procedures |

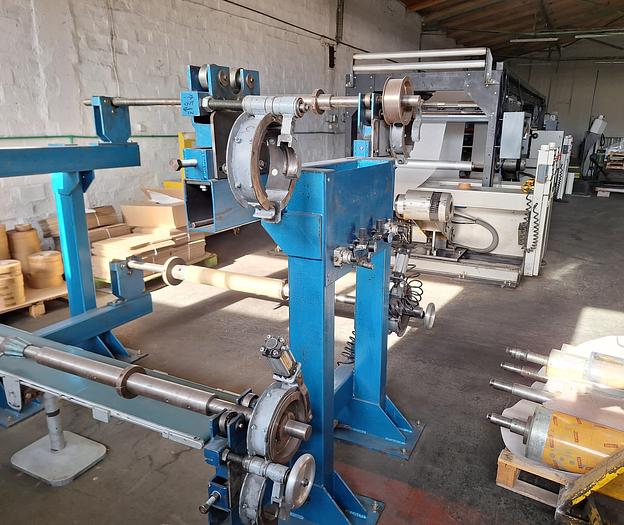

| unwinds | 4 driven unwinds and 4 non-driven unwinds |
| maximum pile height including pallet | 1200mm (47") standard |
| Maximum pile weight including pallet | 1500kg (3300lbf) standard |
| Electrical supply | 380/415V, 50/60Hz |
| Electrical load | 21.5kW standard, higher for high specification machines |
| Air supply | 5.5 bar (80 lbf/in²) |
| Air consumption | 5.5 bar (80 lbf/in²) |
