2012 DCM IM183 (2 colors) Flexo for already made bags

orCall +39 346 4948054

Description

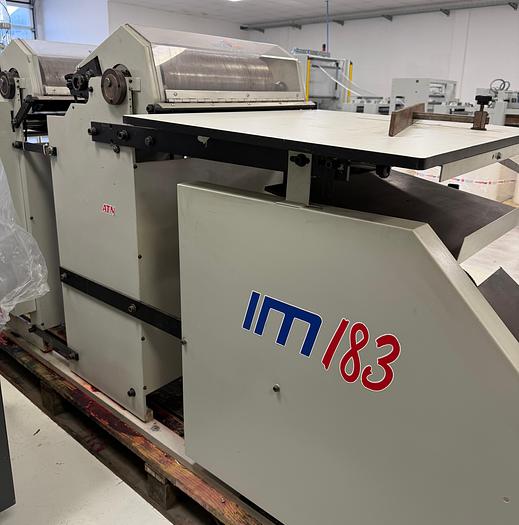

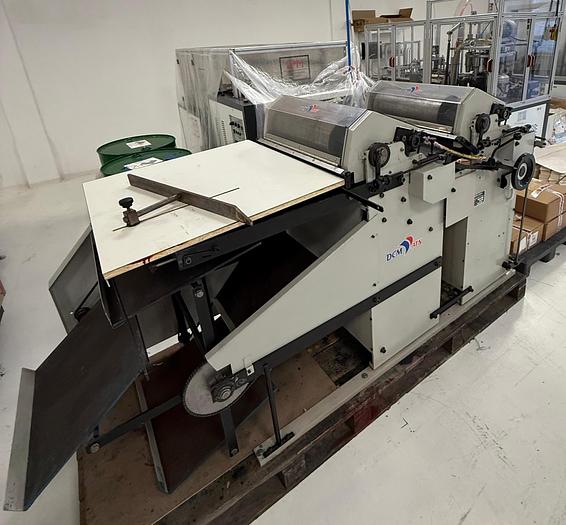

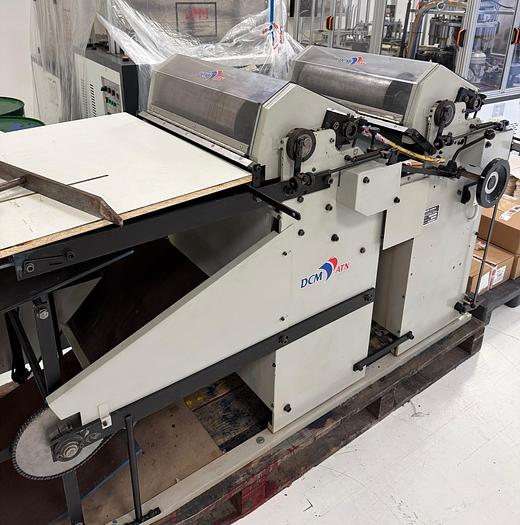

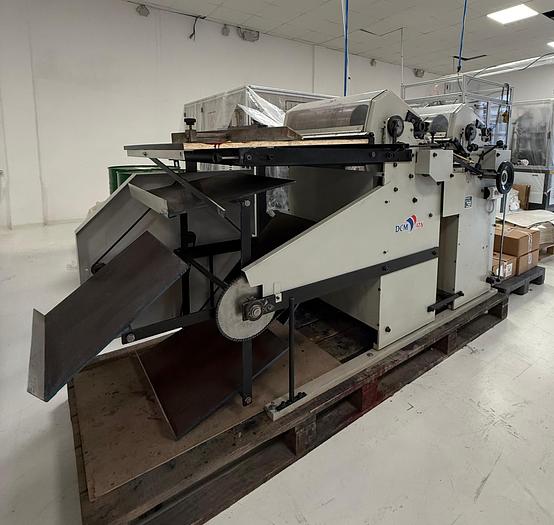

Pre-owned DCM IM183, 2 colors of the year 2012. The machine has been used few, is visible in operation and immediately available for sale

This flexo printing machine is very practical for printing small or medium-sized runs of paper bags, plastic bags, woven and non woven bags or thin corrugated board in in 2 colours in register using a conveyor.

The bags are manually placed in front of locating indexes for feeding into the machine. For a good print registration, the bags are transferred on a conveyor belt between the colors.

Upon exit from the printing section, the bags are ejected onto a rotating platform for drying.

This machine can use water or alcohol or solvent base inks.

Specifications

Manufacturer	DCM
Model	IM183
Year	2012
Condition	Used
Number of printing units	2 colors
Max bag lenght	600 mm
Max. bag width	525 mm
Max. printing surface (Lenght)	500
Max. printing surface (Width)	480
Maximum thickness of the handle	15 mm
Maximum handle height	120 mm
Maximum thickness of the sheet	10 mm
Stereo thickness (with glue)	3 mm
Maximum mechanical speed	1800 up to 2400 sheets/h
Main electric power supply	1 x 240V 50Hz
Installed power	0,55 kW
Materials	Paper or plastic bags, Woven and non-woven bags, Thin corrugated board, Compact board
Applications	ideal for printing on various types of bags, including Square bottom bags with or without handles, Shopping bags with flat or twiste dhandles, Pastry boxes, Pizza boxes, wine bags etc...
Rotating trays for drying	Yes \| After printing , the bags are stacked into four rotating trays, allowing sufficient time for drying
Usable inks	water-based or alcohol-based inks or solvent base inks
